Machined Chip Carriers
For Odd Size 3D Devices
Protect valued parts


 More Chip Carriers    ChipVault Carrier    UV Tape Carrier   Nitto Tape Specs  Home


ChipNTTM universal Blue Nitto Tape chip carrier locks odd size 3D die in a protective cocoon. Permanently engraved with a unique registered serial number for counterfeit protection. Full access for visual inspection. Grip die from sides for fast pick and place. Ultimate protection for odd size 3D chips.

Select the features you need:
  • Customized to protect your device.
  • Precision machined from aluminum stock
  • 2-inch or 4-inch sizes.
  • Lock mechanism: Blue Nitto Tape
  • Release mechanism: Extraction Key located on underside of cover
  • Serialized System: Engraved registered serial number reduces counterfeits.
  • Colors: Standard Gold finish. Optional black, red, green, blue or aluminum.
  • Quick Turn
    		•




    Protect Valued Parts
    About: Universal Design.     •     Non-UV Blue Dicing Tape safely locks odd size 3D chips
    Description Universal machined base.

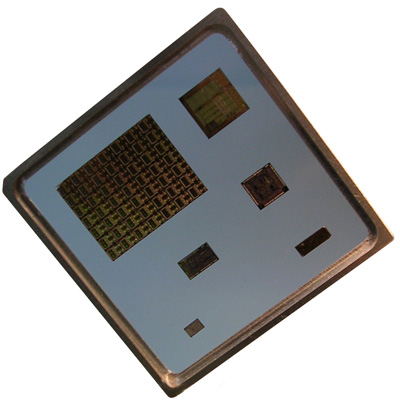

    Aluminum Stock.    		 Universal machined frame.

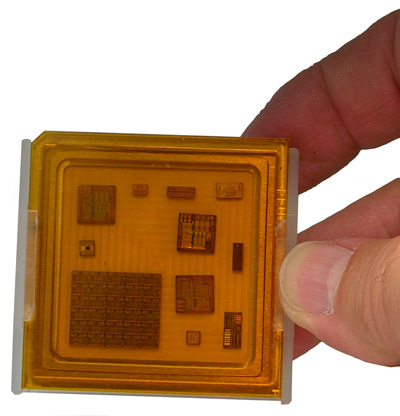

    Blue Nitto Tape locks die in place.    		 Shown with Amber Cover
    Ready to transport
    with confidence
    Quick
    View
    Base and Frame Standard Color: Gold  •  Alternate Color: Black, Red, Green, Blue and Aluminum


    ChipNTTM   Part Series and Description
    Size Part Series Description Chip Size
    Max.    		 Die Height
    Max.    		 Serial
    Nbr    		 Standard
    Color
    2-Inch B2G
    F2G-NTxx
    C2G
    CLIP2P1    		 Base
    Frame
    Cover
    Clip    		 30x30mm
    (1.18"SQ)    		 2.0mm
    0.078"    		 Yes Gold
    4-Inch B4G
    F4G-NTxx
    C4G
    CLIP4P1    		 Base
    Frame
    Cover
    Clip    		 66x66mm
    (2.6"SQ)    		 4.0mm
    0.157"    		 Yes Gold
    Part Number Suffix -xx    two-digit Blue Nitto Tape adhesion your custom chip carrier.
    Material: Bases and frames are machined aluminum Stock. Other materials available.


    Base Part Numbering System
        B         2         G
    Base Size Color
    B = Base 2 = 2-inch
    4 = 4-inch    		 G = Gold (Standard)

    Alternate:
    B = Black
    R = Red
    E = Green
    L = Blue
    A= Aluminum



    Frame Part Numbering System
        F         2         G     -        NT12
    Frame Size Color Nitto Tape Spec
    F = Frame 2 = 2-inch
    4 = 4-inch    		 G = Gold (Standard)

    Alternate:
    B = Black
    R = Red
    E = Green
    L = Blue
    A= Aluminum    		 Nitto Tape
    2-Digit Adhesion Spec



    Cover Part Numbering System
        C         2         G         X
    Cover Size Color Extraction Key
    C = Cover 2 = 2-inch
    4 = 4-inch    		 G = Gold (Standard)

    Alternate:
    B = Black
    R = Red
    E = Green
    L = Blue
    A= Aluminum

    Plastic Construction:
    P = Polyproylene (Opaque)
    M = Amber (Translucent)    		 Extraction Key
    Pattern

    F = Radial Star Burst
    P = Pin Pattern
    X = Special Pattern



    Clip Part Numbering System
        CLIP         2         P         1
    Clip Size Color Trays in Stack
    CLIP = Clip 2 = 2-inch
    4 = 4-inch    		 P = Polyproylene
    (Carbon Powder)    		 1 = 1-Base + 1-Cover
    5 = 5-Bases + 1-Cover
    10 = 10-Bases + 1-Cover
    (2-inch Only)




    Available from:
    Mirror Semiconductor
    17595 Harvard Ave, Suite 509
    Irvine, CA 92614, USA
    Tel: 1-866-404-8800
    email to Info@MirrorSemi.com
