M-QFN Open cavity (air cavity) packages for quick-to-market applications. Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave. Use for R&D, laboratory projects and pre-production where low volume, low cost is required. Features to suit your specific packaging needs: See our Lids. See All Open Cavity Packages Available

M-QFN32W.5-G6 Open (Air) Cavity QFN
N Leads	P Pitch	D/E Body	D1/E2 Die Pad	Plating Spec	Qty M-QFN 2" Tray	Part Number	PDF Outline Drawing	Rotatable 360° Solidworks Model	Status
32	0.5mm	5mm	3.4mm	G6	36	M-QFN32W.5-G6	453260	Model	Tooled

Install Solidworks e-Drawings software Version 10. Required to view rotatable models: PC Version • Mac Version


Photo Examples M-QFN32W.5-G6 Open Cavity
Click Photos to Enlarge

Perspective View
32L 5x5mm
Pitch 0.5mm
NiPdAu G6

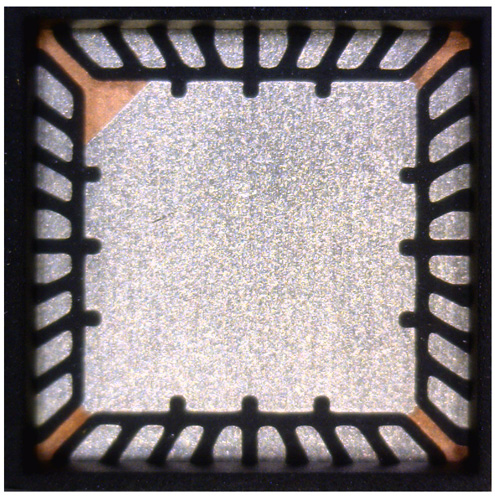

Top Cavity
32L 5x5mm
Pitch 0.5mm
NiPdAu G6

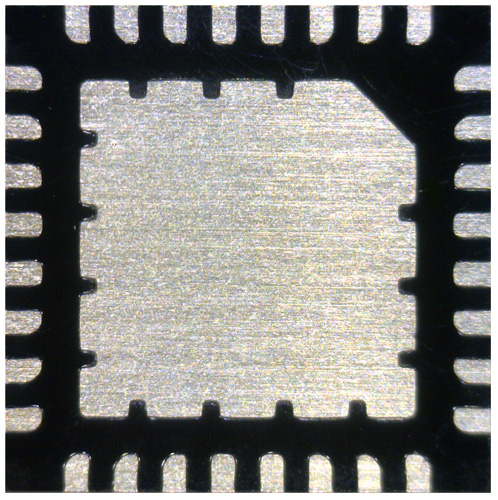

Bottom View
32L 5x5mm
Pitch 0.5mm
NiPdAu G6


Construction: Copper Lead Frame (C-194 F/H) Plating: NiPdAu G6 - Ni 0.50 ~ 2.00µm • Pd 0.02 ~ 0.15µm • Au 0.003 ~ 0.015µm G5 - Ni 1.27 ~ 4.57µm • Pd 0.15 ~ 0.51µm • Au 0.10 ~ 0.20µm
