M-QFN40W.5
Open Cavity QFN

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


M-QFN Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
  •


    M-QFN40T.5-G3 and M-QFN40W.5-G7
    Open (Air) Cavity QFN
    N
    Leads
    P
    Pitch
    D/E
    Body
    D1/E2
    Die Pad
    Plating
    Spec
    Qty
    2" Tray
    Qty
    4" Tray
    Part Number PDF
    Outline
    Drawing
    Rotatable
    360°
    Solidworks
    Model
    Status
    40 0.5mm 6mm 4.4mm G7 25 121 M-QFN40W.5-G7 454070 Model E.O.L.
    40 0.5mm 6mm 4.3mm G3 25 121 M-QFN40T.5-G3 454030 Model Tooled
    Install Solidworks e-Drawings software Version 10.
    Required to view rotatable models:
    PC Version  •  Mac Version




    Photo Examples M-QFN40W.5-G3 Open Cavity
    Click Photos to Enlarge

    Click to Enlarge

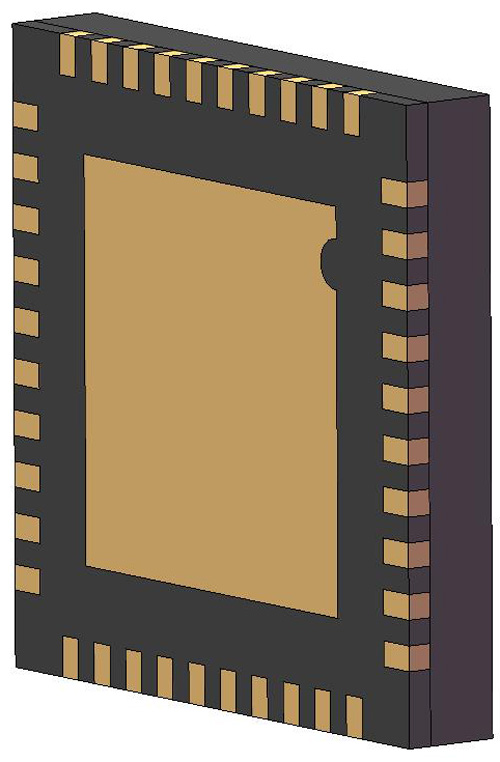

    Perspective View
    40L 6x6mm
    Pitch 0.5mm
    G3
    Click to Enlarge

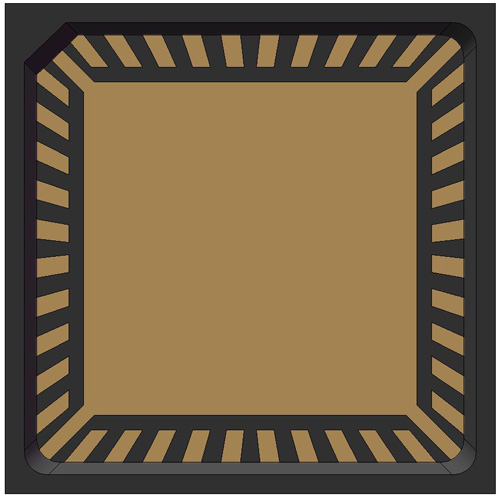

    Top Cavity
    40L 6x6mm
    Pitch 0.5mm
    G3
    Click to Enlarge

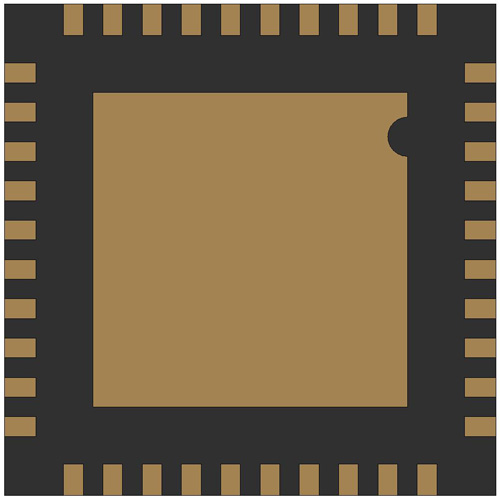

    Bottom View
    40L 6x6mm
    Pitch 0.5mm
    G3
    Click to Enlarge
    Edge View
    40L 6x6mm
    Pitch 0.5mm
    G3
    Click to Enlarge

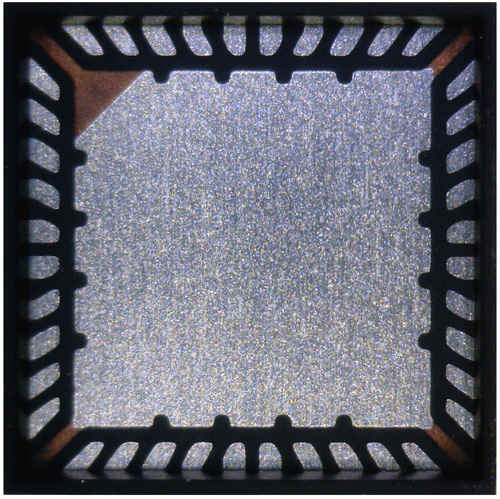

    Cavity View
    40L 6x6mm
    Pitch 0.5mm
    G3
    Click to Enlarge

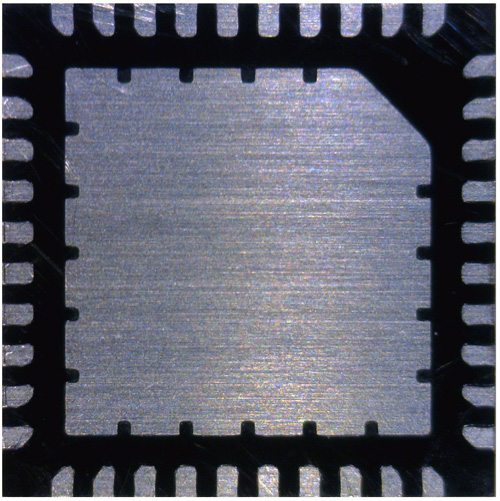

    Bottom View
    40L 6x6mm
    Pitch 0.5mm
    G3

    Construction:
  • Copper Lead Frame (C-194 F/H)
  • Plating: NiPdAu
  • G7 - Ni 0.50 ~ 2.00µm  • Pd 0.02 ~ 0.15µm  •  Au 0.025 ~ 0.125µm
  • G3 - Ni 2.5 ~ 7.6µm  •  Au 1.0 ~ 2.0µm
  •
