"Mirrored Pinout" devices are wired in clockwise rotation. Standard IC packages are wired in counterclockwise rotation. By combining MirrorChip^TM with standard integrated circuits you can design smaller circuit boards with fewer layers at lower cost.

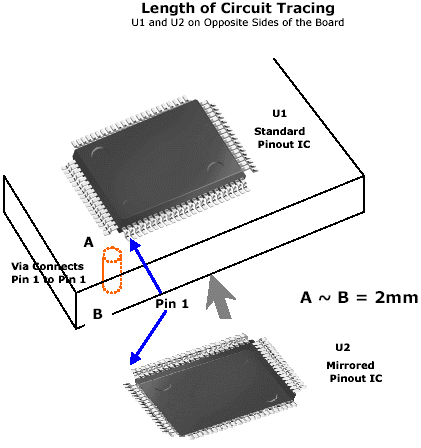

By mounting a standard IC on the top side of the board with a Mirrored Pinout IC directly under it on the other side, the size of the board shrinks, allowing smaller black boxes and lighter total systems. Copper tracing lengths dramatically reduce and performance improves. Speed increases 1 nano second faster for each 6-inch (150mm) reduction in copper etch. Cost is reduced by decreasing the number of board inner layers, with less raw materials (gold, silver, copper).
