StackChipTM
Stackable DDR2 BGA Packages

Products   Home

  • DDR2 StackChipTM 2Gb DDR2 Memory.


  • We assemble your 1Gb DDR2 BGA inside a stackable molded PoP package.
  • You attach another 1Gb DDR2 package on top.
  • Results in a 2Gb DDR2 memory device.
  • Same land pattern as original DDR2 device.
    •


    3D-Rotatable

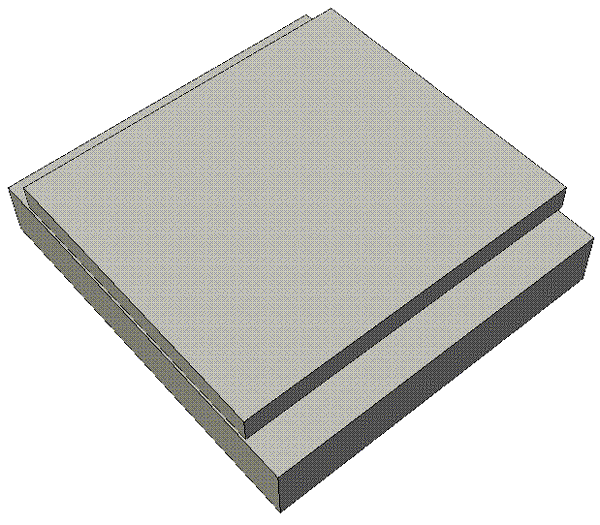

    Stacked Assembly

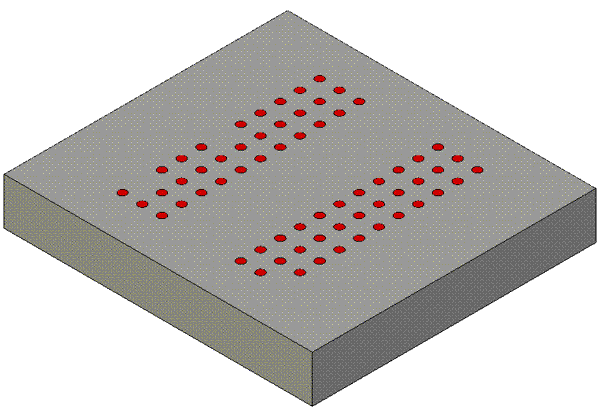

    3D-Rotatable Bottom Interposer

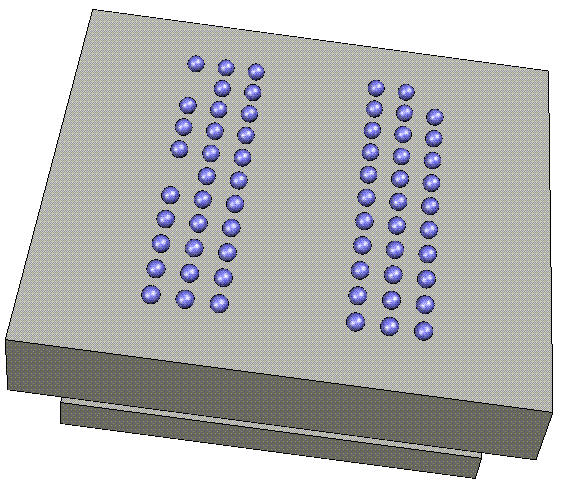

    Top   Bottom View Movie Use MS ie Browser & Click Active-X
    For non-MS Browsers, Download Software

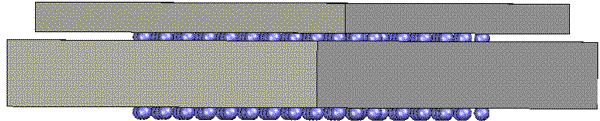

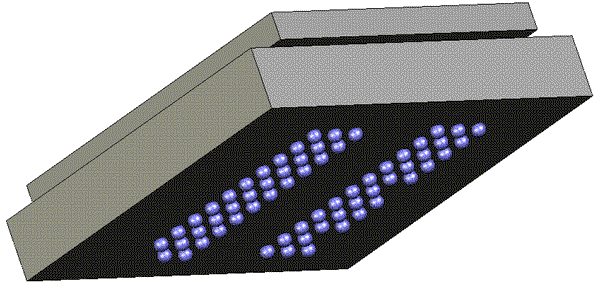

    Side Interposer Top Under Side

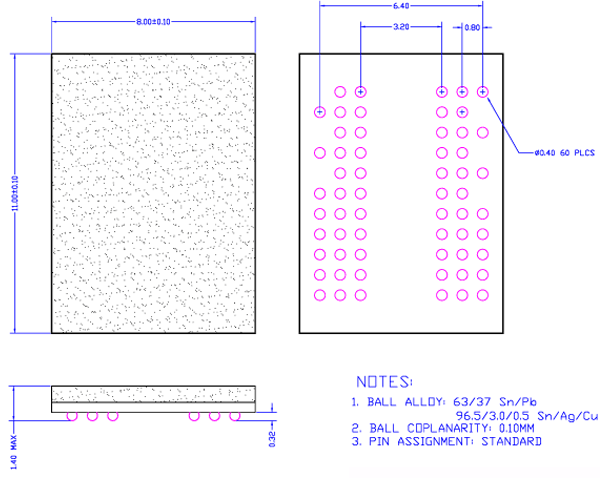

    Outline Drawing of Interposer:
    DDR2_256Mx4x2
    60-Ball 8x11mm
    PDF Outline Drawing #1    		 DDR2_256Mx4x2
    63-Ball 11x11.5mm
    PDF Outline Drawing #2

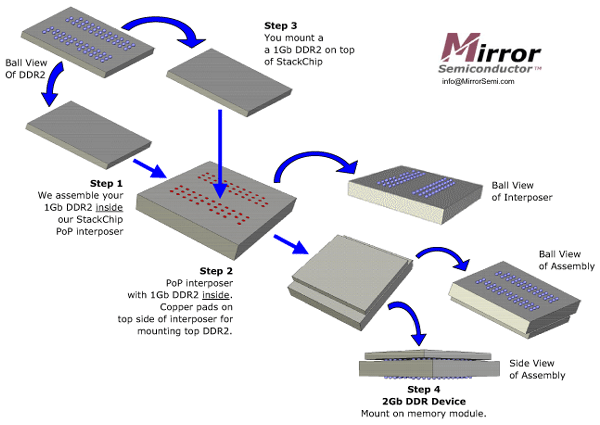

    How StackChip DDR2 PoP assembly is made:
    PDF Version





    Back to Products    Home
