UDPo
User Definable Pinout
For Legacy Die

Products   Home

  • UDPo - User Definable Chip Pinouts


  • Co-design PC boards while simulateously re-mapping chip pinouts.
  • Create optimized boards with smallest size and fewest inner layers.
  • EDA Tool iterates chip pinouts while autorouting PC board for highest performance.
    •


    What if you could co-design PC boards simply by asking the chip supplier to change the pinouts according to your needs? Today, that wish seems like a fairy-tale.

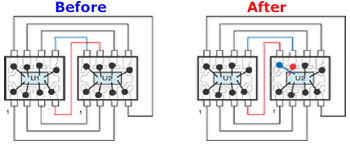

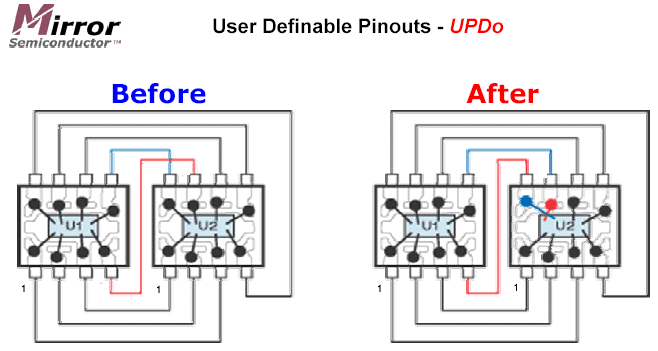

    On the "Before" schematic the blue and red circuit cross.
    By re-mapping the pinout of the "U2" device,
    the "After" circuit is simplified,
    with point-to-point wiring on a single layer.    		 More >>>



    Power Point Story
    Click "OK" to open .pps file.








    Back to Products    Home
