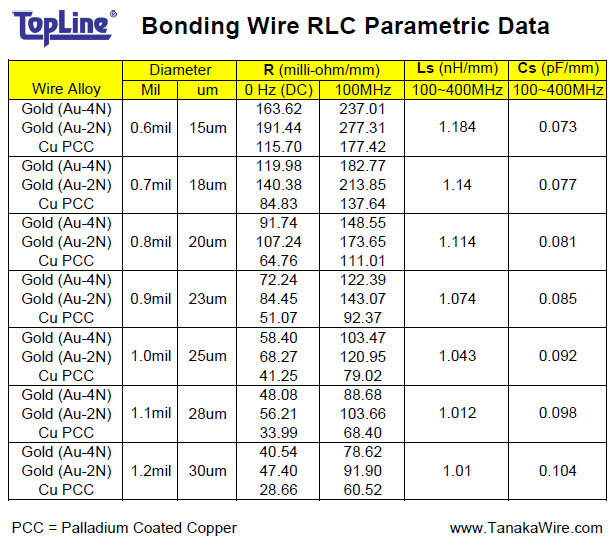

±TolRLCAWG

HandlingELBL

Part#   •  Order Nbr

Fusing Current • Weight

Spool   •  Green Start

BondersCapillaryX-Ref

Library & Reference


About TANAKA:
TANAKA Precious Metals is the premier manufacturer of bonding wire to the semiconductor industry. TANAKA offers a full range of Gold (Au), Silver(Ag), Aluminum (Al), bare Copper (Cu) and Palladium Coated Copper (PCC) covering all applications of wedge, ball and bump bonding. Also high performance flat Gold and flat Al ribbon for RF modules and power applications. Also available Pt Alloy Wire

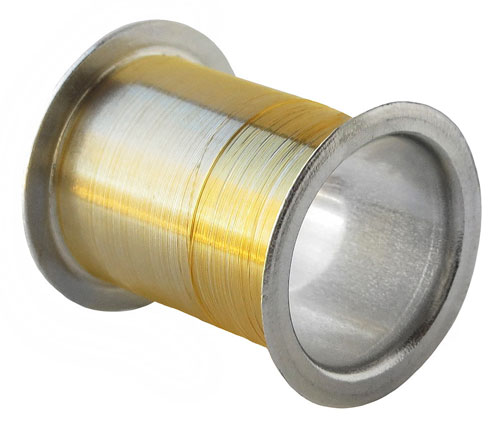

Now available on 1/2-inch "H" spools for manual bonders.

Green=Start • Red=End.
   GSA Type - Gold (Au) Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
HAZ
Length
Length
Meters
Length
Feet
Part Number Order Nr
GSA 4N Gold
Au99.99%
Ø 12.5µm
(Ø 0.5 mil)
1.7~3.5 gf 17~34 mN 1.0~6.0% 120~180µm 100m
200m
300ft
600ft
GSA-12.5A100
GSA-12.5A200
300121
300122
Ø 15µm
(Ø 0.6 mil)
2.5~5.3 gf 25~52 mN 1.0~6.0% 130~200µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-15A100
GSA-15A300
GSA-15A500
300151
300153
300155
Ø 18µm
(Ø 0.7 mil)
3.6~7.6 gf 35~75 mN 1.0~6.0% 150~210µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-18A100
GSA-18A300
GSA-18A500
300181
300183
300185
Ø 20µm
(Ø 0.8 mil)
4.5~9.4 gf 44~92 mN 1.0~7.0% 150~220µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-20A100
GSA-20A300
GSA-20A500
300201
300203
300205
Ø 23µm
(Ø 0.9 mil)
5.9~12.5 gf 58~123 mN 1.0~7.0% 150~230µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-23A100
GSA-23A300
GSA-23A500
300231
300233
300235
Ø 25µm
(Ø 1.0 mil)
7.0~14.7 gf 69~144 mN 1.0~7.0% 160~240µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-25A100
GSA-25A300
GSA-25A500
300251
300253
300255
Ø 30µm
(Ø 1.2 mil)
10.0~21.2 gf 98~208 mN 1.5~8.5% 170~270µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-30A100
GSA-30A300
GSA-30A500
300301
300303
300305
Ø 32µm
(Ø 1.25 mil)
11.4~24.1 gf 112~236 mN 1.5~8.5% 170~280µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-32A100
GSA-32A300
GSA-32A500
300321
300323
300325
Ø 33µm
(Ø 1.30 mil)
12.1~25.5 gf 119~251 mN 1.5~8.5% 170~280µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-33A100
GSA-33A300
GSA-33A500
300331
300333
300335
Ø 38µm
(Ø 1.5 mil)
16.1~34.0 gf 158~334 mN 1.5~8.5% 170~300µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-38A100
GSA-38A300
GSA-38A500
300381
300383
300385
Ø 50µm
(Ø 2.0 mil)
27.9~58.8 gf 274~577 mN 1.5~8.5% 200~340µm 100m
300m
500m
300ft
1000ft
1500ft
GSA-50A100
GSA-50A300
GSA-50A500
300501
300503
300505
Ø 62.5µm
(Ø 2.5 mil)
43.7~90.7 gf 425~888 mN 2.0~10% - 100m 300ft GSA62.5A100 300631
Ø 65µm
(Ø 2.5 mil)
47.4~96.7 gf 465~947 mN 2.0~10% - 100m 300ft GSA65A100 300651
Note 1: Stable stitch bond on PPF (NiPdAu) QFN at 175°C , QFP and BGA Packages.
Note 2: Good 2nd bond stitch remaining after pull test. Good squashed ball shape and excellent FAB softness.
Note 3: HAZ - Heat Affected Zone. Loop should be formed beyond the HAZ length along wire axis from the ball.   •   Within the HAZ length, the wire tends to be more brittle than the unaffected zone.
Note 4: Applications: Typically GSA is capable of higher loop heights for use in higher pin count devices.
Note 5: Standard Tolerance: Ø12.5~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~80μm ±3μm
Note 6: Wire diameter available: 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm , 62.5µm , 65µm
Note 7: Green=Start • Red=End.


   GLD-H Type - Gold (Au) High Performance Wedge Bonding Wire   •   See GLD Type Half-Inch Spools for Manual Wire Bonders
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
GLD-H


4N Gold
Au99.99%

High
Performance
Wedge to
Wedge
Bonding
Ø 12.5µm
(Ø 0.5 mil)
2.4 gf Min 23 mN Min 3.5% Max 25m
50m
100m
200m
75ft
150ft
300ft
600ft
GLD-H-12.5H25
GLD-H-12.5H50
GLD-H-12.5A100
GLD-H-12.5A200
309129
309120
309121
309122
Ø 15µm
(Ø 0.6 mil)
3.5 gf Min 34 mN Min 3.5% Max 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
GLD-H-15H25
GLD-H-15H50
GLD-H-15A100
GLD-H-15A300
GLD-H-15A500
309159
309150
309151
309153
309155
Ø 18µm
(Ø 0.7 mil)
4.0 gf Min 39 mN mIN 3.5% Max 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
GLD-H-18H25
GLD-H18H50
GLD-H-18A100
GLD-H18A300
GLD-H-18A500
309189
309180
309181
309183
309185
Ø 20µm
(Ø 0.8 mil)
6.0 gf Min 59 mN Min 3.5% Max 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
GLD-H-20H25
GLD-H-20H50
GLD-H-20A100
GLD-H-20A300
GLD-H-20A500
309209
309200
309201
309203
309205
Ø 25µm
(Ø 1.0 mil)
16 gf Min 156 mN Min 3.5% Max 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
GLD-H-25H25
GLD-H-25H50
GLD-H-25A100
GLD-H-25A300
GLD-H-25A500
309259
309250
309251
309253
309255
Ø 30µm
(Ø 1.20 mil)
20 gf Min 196 mN Min 3.5% Max 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
GLD-H-30H25
GLD-H-30H50
GLD-H-30A100
GLD-H-30A300
GLD-H-30A500
309309
309300
309301
309303
309305
Ø 32µm
(Ø 1.25 mil)
23 gf Min 225 mN Min 3.5% Max 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
GLD-H-32H25
GLD-H-32H50
GLD-H-32A100
GLD-H-32A300
GLD-H-32A500
309329
309320
309321
309323
309325
Ø 35µm
(Ø 1.4 mil)
27 gf Min 264 mN Min 4.5% Max 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
GLD-H-35H25
GLD-H-35H50
GLD-H-35A100
GLD-H-35A300
GLD-H-35A500
309359
309350
309351
309353
309355
Ø 38µm
(Ø 1.5 mil)
35 gf Min 343 mN Min 4.5% Max 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
GLD-H-38H25
GLD-H-38H50
GLD-H-38A100
GLD-H-38A300
GLD-H-38A500
309389
309380
309381
309383
309385
Ø 50µm
(Ø 2.0 mil)
45 gf Min 441 mN min 4.5% Max 25m
50m
100m
300m
75ft
150ft
300ft
1000ft
GLD-H-50H25
GLD-H-50H50
GLD-H-50A100
GLD-H-50A300
309509
309500
309501
309503
Note 1: For wedge to wedge bonding. Better than HD5
Note 2: Ø18~30um diameter has maximum elongation 3.5%.
Note 4: Wire diameter available: 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm
Note 5: Green=Start • Red=End.


   GLD Type - Gold (Au) Standard Wedge Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
GLD


4N Gold
Au99.99%

Standard
Wedge to
Wedge
Bonding
Ø 15µm
(Ø 0.6 mil)
1.7~3.7 gf 17~36 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GLD-15A100
GLD-15A300
GLD-15A500
349151
349153
349155
Ø 18µm
(Ø 0.7 mil)
4.9~7.4 gf 48~73 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GLD-18A100
GLD-18A300
GLD-18A500
349181
349183
349185
Ø 20µm
(Ø 0.8 mil)
6.0~9.0 gf 59~88 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GLD-20A100
GLD-20A300
GLD-20A500
349201
349203
349205
Ø 25µm
(Ø 1.0 mil)
10~14 gf 98~137 mN 2.0~7.0% 100m
300m
500m
1000m
300ft
1000ft
1500ft
3000ft
GLD-25A100
GLD-25A300
GLD-25A500
GLD-25A1000
349251
349253
349255
349256
Ø 30µm
(Ø 1.20 mil)
14~20 gf 137~196 mN 2.0~9.0% 100m
300m
500m
300ft
1000ft
1500ft
GLD-30A100
GLD-30A300
GLD-30A500
349301
349303
349305
Ø 32µm
(Ø 1.25 mil)
15~23 gf 147~225 mN 2.0~9.0% 100m
300m
500m
300ft
1000ft
1500ft
GLD-32A100
GLD-32A300
GLD-32A500
349321
349323
349325
Ø 35µm
(Ø 1.4 mil)
19~27 gf 186~264 mN 2.0~9.0% 100m
300m
500m
300ft
1000ft
1500ft
GLD-35A100
GLD-35A300
GLD-35A500
349351
349353
349355
Ø 38µm
(Ø 1.5 mil)
22~35 gf 215~343 mN 2.0~10.0% 100m
300m
500m
300ft
1000ft
1500ft
GLD-38A100
GLD-38A300
GLD-38A500
349381
349383
349385
Ø 50µm
(Ø 2.0 mil)
32~45 gf 312~441 mN 2.0~10.0% 100m
300m
300ft
1000ft
GLD-50A100
GLD-50A300
349501
349503
Note 1: For wedge to wedge bonding. Better than HD5
Note 2: Wire diameter available: 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm
Note 3: Green=Start • Red=End.


   Y Type - Gold (Au) High Power Wedge Bonding Wire and BSOB (Ball Stitch on Ball) Security Bonding
Type Alloy Ø Diameter
±3% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
Y


4N Gold
Au99.99%

High Power
Wedge to
Wedge
Bonding


and

BSOB
(Ball Stitch
on Ball)
Security
Bonding
Ø 50µm
(Ø 2.0 mil)
35-45 gf 338~435 mN 2.0~10% 100m 300ft Y-50B100 331501
Ø 62.5µm
(Ø 2.5 mil)
38~75 gf 367~725 mN 6~20% 100m 300ft Y-62.5B100 331631
Ø 65µm
(Ø 2.5 mil)
40~80 gf 390~784 mN 6~20% 100m 300ft Y-65B100 331651
Ø 75µm
(Ø 3.0 mil)
60~105 gf 580~1015 mN 2.0~12% 100m 300ft Y-75B100 331751
Ø 100µm
(Ø 4.0 mil)
120~200 gf 1160~1935 mN 3.0~15% 100m 300ft Y-100K100 331001
Ø 125µm
(Ø 5.0 mil)
150 gf Min 1450 mN Min 3.0% Min 100m 300ft Y-125K100 331011
Ø 150µm
(Ø 6.0 mil)
200 gf Min 1935 mN Min 3.0% Min 100m 300ft Y-150K100 331021
Ø 175µm
(Ø 7.0 mil)
250 gf Min 2400 mN Min 4.0% Min 100m 300ft Y-175K100 331031
Ø 200µm
(Ø 8.0 mil)
325 gf Min 3140 mN Min 4.0% Min 100m 300ft Y-200K100 331041
Ø 250µm
(Ø 10.0 mil)
400gf Min 3800 mN Min 5.0% Min 100m 300ft Y-250K100 331051
Note 1: For wedge to wedge bonding. Also good for BSOB (Ball Stitch over Ball) security bonding.
Note 2: Wire diameter available: 50µm , 75µm , 100µm , 125µm , 150µm , 175µm , 200µm , 250µm
Note 3: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~100μm ±3μm   •   Ø125~150μm ±5μm   •   Ø175~200μm ±7μm  •   Ø250μm ±10μm
Note 4: Green=Start • Red=End.


   GLF Type - Gold (Au) Super Low Loop Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
HAZ
Length
Length
Meters
Length
Feet
Part Number Order Nr
GLF


4N Gold
Au99.99%

Super
Low Loop
Ø 15µm
(Ø 0.6 mil)
3.1~5.9 gf 30~58 mN 2.0~6.0% ≥ 30μm 100m
300m
500m
300ft
1000ft
1500ft
GLF-15A100
GLF-15A300
GLF-15A500
307151
307153
307155
Ø 18µm
(Ø 0.7 mil)
4.5~8.5 gf 44~83 mN 2.0~6.0% ≥ 36μm 100m
300m
500m
300ft
1000ft
1500ft
GLF-18A100
GLF-18A300
GLF-18A500
307181
307183
307185
Ø 20µm
(Ø 0.8 mil)
5.6~10.5 gf 55~103 mN 2.0~7.0% ≥ 40μm 100m
300m
500m
300ft
1000ft
1500ft
GLF-20A100
GLF-20A300
GLF-20A500
307201
307203
307205
Ø 25µm
(Ø 1.0 mil)
8.7~16.4 gf 85~161 mN 2.0~7.0% ≥ 50μm 100m
300m
500m
300ft
1000ft
1500ft
GLF-25A100
GLF-25A300
GLF-25A500
307251
307253
307255
Ø 30µm
(Ø 1.20 mil)
12.5~23.7 gf 123~232 mN 2.0~9.0% ≥ 60μm 100m
300m
500m
300ft
1000ft
1500ft
GLF-30A100
GLF-30A300
GLF-30A500
307301
307303
307305
Ø 38µm
(Ø 1.50 mil)
20.1~38.0 gf 198~374 mN 2.0~9.0% ≥ Ask 100m
300m
500m
300ft
1000ft
1500ft
GLF-38A100
GLF-38A300
GLF-38A500
307381
307383
307385
Note 1: For lower loop height than conventional low loop wires. Example: 70um average using Sinkawa UTC-200 ball bonder.
Note 2: HAZ=85um and free air ball diameter of 50um. Less damage at the neck region. Suppression of snake wire.
Note 3: Higher pull load than conventional low loop wires.
Note 4: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm
Note 5: Green=Start • Red=End.


   GMH-2 Type - Gold (Au) High Tensile Strength Bonding Wire for Fine-Pitch and Stack Die.
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
GMH-2


4N Gold
Au99.99%

High
Tensile
Strength

Beryllium (Be)
Doping
Stabilizing
Agent
Ø 15µm
(Ø 0.6 mil)
3.7~6.5 gf 36~64 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GMH2-15A100
GMH2-15A300
GMH2-15A500
302151
302153
302155
Ø 18µm
(Ø 0.7 mil)
5.4~9.4 gf 53~92 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GMH2-18A100
GMH2-18A300
GMH2-18A500
302181
302183
302185
Ø 20µm
(Ø 0.8 mil)
6.7~11.6 gf 66~99 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GMH2-20A100
GMH2-20A300
GMH2-20A500
302201
302203
302205
Ø 25µm
(Ø 1.0 mil)
10.4~18.1 gf 102~178 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GMH2-25A100
GMH2-25A300
GMH2-25A500
302251
302253
302255
Ø 30µm
(Ø 1.20 mil)
15.0~26.1 gf 147~256 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GMH2-30A100
GMH2-30A300
GMH2-30A500
302301
302303
302305
Note 1: High tensile strength with Be (Beryllium) doping for multiple loop profiles used in BGA packages.
Note 2: Excellent bump formation for stack die package.
Note 3: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm
Note 4: Green=Start • Red=End.


   GPG-2 Type - Gold 2N High Reliability Au Alloy Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
GPG-2


2N Gold
Au99%-Pd1%

High
Reliability
Ø 15µm
(Ø 0.6 mil)
3.5~6.3 gf 34~62 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-15A100
GPG2-15A300
GPG2-15A500
304151
304153
304155
Ø 18µm
(Ø 0.7 mil)
5.0~9.0 gf 49~88 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-18A100
GPG2-18A300
GPG2-18A500
304181
304183
304185
Ø 20µm
(Ø 0.8 mil)
6.2~11.1 gf 61~109 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-20A100
GPG2-20A300
GPG2-20A500
304201
304203
304205
Ø 25µm
(Ø 1.0 mil)
9.7~17.4 gf 95~171 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-25A100
GPG2-25A300
GPG2-25A500
304251
304253
304255
Ø 30µm
(Ø 1.2 mil)
13.9~25.1 gf 136~246 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-30A100
GPG2-30A300
GPG2-30A500
304301
304303
304305
Ø 32µm
(Ø 1.25 mil)
15.8~28.5 gf 155~279 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-32A100
GPG2-32A300
GPG2-32A500
304321
304323
304325
Ø 33µm
(Ø 1.3 mil)
16.8~30.3 gf 164~297 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-33A100
GPG2-33A300
GPG2-33A500
304331
304333
304335
Ø 35µm
(Ø 1.4 mil)
19.0~34.1 gf 186~334 mN 2.0~8.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-35A100
GPG2-35A300
GPG2-35A500
304351
304353
304355
Ø 38µm
(Ø 1.5 mil)
22.3~40.2 gf 219~394 mN 2.0~8.0% 100m
300m
500m
300ft
1000ft
1500ft
GPG2-38A100
GPG2-38A300
GPG2-38A500
304381
304383
304385
Note 1: Gold Alloy 2N (Au99%-Pd1%). High bond reliability. Good match for mold compound with halogen.
Note 2: Good squashed ball
Note 3: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm
Note 4: Green=Start • Red=End.


   GPH Type - Gold 2N High Reliability Au Alloy Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
GPH


2N Gold
Au99% X-Rich

High
Reliability
Ø 15µm
(Ø 0.6 mil)
3.3~6.1 gf 32~60 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPH-15A100
GPH-15A300
GPH-15A500
308151
308153
308155
Ø 18µm
(Ø 0.7 mil)
4.8~8.8 gf 47~86 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPH-18A100
GPH-18A300
GPH-18A500
308181
308183
308185
Ø 20µm
(Ø 0.8 mil)
5.9~10.8 gf 58~106 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GPH-20A100
GPH-20A300
GPH-20A500
308201
308203
308205
Ø 25µm
(Ø 1.0 mil)
9.2~16.9 gf 90~166 mN 2.0~8.0% 100m
300m
500m
300ft
1000ft
1500ft
GPH-25A100
GPH-25A300
GPH-25A500
308251
308253
308255
Ø 30µm
(Ø 1.2 mil)
13.2~24.4 gf 129~239 mN 2.0~8.0% 100m
300m
500m
300ft
1000ft
1500ft
GPH-30A100
GPH-30A300
GPH-30A500
308301
308303
308305
Ø 32µm
(Ø 1.25 mil)
15.1~27.7 gf 148~272 mN 2.0~8.0% 100m
300m
500m
300ft
1000ft
1500ft
GPH-32A100
GPH-32A300
GPH-32A500
308321
308323
308325
Ø 35µm
(Ø 1.4 mil)
18.0~33.2 gf 177~326 mN 2.0~8.0% 100m
300m
500m
300ft
1000ft
1500ft
GPH-35A100
GPH-35A300
GPH-35A500
308351
308353
308355
Ø 38µm
(Ø 1.5 mil)
21.2~39.1 gf 208~384 mN 2.0~8.0% 100m
300m
500m
300ft
1000ft
1500ft
GPH-38A100
GPH-38A300
GPH-38A500
308381
308383
308385
Note 1: Gold Alloy 2N (Au99% X-Rich). High bond reliability and good character for halogen-free mold compound.
Note 2: Good squashed ball
Note 3: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm
Note 4: Green=Start • Red=End.


   M3 Type - Gold 4N Au Alloy Bonding Wire   •   See M3 Type Half-Inch Spools for Manual Wire Bonders
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
M3


4N Gold
Au99.99%

Beryllium (Be)
Doping
Stabilizing
Agent
Ø 12.5µm
(Ø 0.5 mil)
1.4 gf Min 14 mN Min 1.0~6.0% 25m
50m
100m
200m
75ft
150ft
300ft
600ft
M3-12.5H25
M3-12.5H50
M3-12.5A50
M3-12.5A100
M3-12.5A200
303129
303129
303120
303121
303122
Ø 15µm
(Ø 0.6 mil)
2 gf Min 19.6 mN 1.0~6.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-15H25
M3-15H50
M3-15A100
M3-15A300
M3-15A500
303159
303150
303151
303153
303155
Ø 18µm
(Ø 0.7 mil)
4.6~7.1 gf 45~70 mN 1.0~6.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-18H25
M3-18H50
M3-18A100
M3-18A300
M3-18A500
303189
303180
303181
303183
303185
Ø 20µm
(Ø 0.8 mil)
5.7~8.8 gf 56~86 mN 2.0~6.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-20H25
M3-20H50
M3-20A100
M3-20A300
M3-20A500
303209
303200
303201
303203
303205
Ø 25µm
(Ø 1.0 mil)
8.9~13.8 gf 87~135 mN 2.0~7.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-25H25
M3-25H50
M3-25A100
M3-25A300
M3-25A500
303259
303250
303251
303253
303255
Ø 30µm
(Ø 1.20 mil)
12.9~19.8 gf 127~194 mN 2.0~9.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-30H25
M3-30H50
M3-30A100
M3-30A300
M3-30A500
303349
303300
303301
303303
303305
Ø 32µm
(Ø 1.25 mil)
14.7~22.6 gf 144~222 mN 2.0~9.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-32H25
M3-32H50
M3-32A100
M3-32A300
M3-32A500
303329
303320
303321
303323
303325
Ø 33µm
(Ø 1.3 mil)
15.6~24.0 gf 153~235 mN 2.0~9.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-33H25
M3-33H50
M3-33A100
M3-33A300
M3-33A500
303339
303330
303331
303333
303335
Ø 35µm
(Ø 1.4 mil)
17.5~27.0 gf 172~265 mN 3.0~9.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-35H25
M3-35H50
M3-35A100
M3-35A300
M3-35A500
303359
303350
303351
303353
303355
Ø 38µm
(Ø 1.5 mil)
20.7~31.8 gf 203~312 mN 4.0~12.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-38H25
M3-38H50
M3-38A100
M3-38A300
M3-38A500
303389
303380
303381
303383
303385
Ø 50µm
(Ø 2.0 mil)
35.8~55.1 gf 351~541 mN 4.0~15.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
M3-50H25
M3-50H50
M3-50A100
M3-50A300
M3-50A500
303509
303500
303501
303503
303505
Note 1: Gold Alloy 4N (Au99.99%). M3 standard Type bonding wire.
Note 2: Good squashed ball. Beryllium (Be) doping stabilizing agent.
Note 3: Wire diameter available: 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm ,35µm , 38µm , and 50µm
Note 4: Green=Start • Red=End.


   GBC Type - 2N Gold (Au99-Pd1% Alloy) Bumping Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
GBC 2N Gold
Au99%-Pd1.0%
Bumping Wire
Ø 15µm
(Ø 0.6 mil)
≥5.2 gf ≥51 mN 1.5~4.0% 100m
300m
500m
300ft
1000ft
1500ft
GBC-15A100
GBC-15A300
GBC-15A500
305151
305153
305155
Ø 18µm
(Ø 0.7 mil)
≥8.2 gf ≥80 mN 1.5~4.0% 100m
300m
500m
300ft
1000ft
1500ft
GBC-18A100
GBC-18A300
GBC-18A500
305181
305183
305185
Ø 20µm
(Ø 0.8 mil)
≥9.3 gf ≥91 mN 1.5~4.0% 100m
300m
500m
300ft
1000ft
1500ft
GBC-20A100
GBC-20A300
GBC-20A500
305201
305203
305205
Ø 25µm
(Ø 1.0 mil)
≥14.5 gf ≥142 mN 1.5~5.0% 100m
300m
500m
300ft
1000ft
1500ft
GBC-25A100
GBC-25A300
GBC-25A500
305251
305253
305255
Ø 30µm
(Ø 1.2 mil)
≥20.9 gf ≥205 mN 1.5~5.0% 100m
300m
500m
300ft
1000ft
1500ft
GBC-30A100
GBC-30A300
GBC-30A500
305301
305303
305305
Ø 32µm
(Ø 1.25 mil)
≥23.8 gf ≥233 mN 1.5~5.0% 100m
300m
500m
300ft
1000ft
1500ft
GBC-32A100
GBC-32A300
GBC-32A500
305321
305323
305325
Ø 35µm
(Ø 1.4 mil)
≥28.4 gf ≥279 mN 1.5~6.0% 100m
300m
500m
300ft
1000ft
1500ft
GBC-35A100
GBC-35A300
GBC-35A500
305351
305353
305355
Ø 38µm
(Ø 1.5 mil)
≥33.5 gf ≥329 mN 1.5~6.0% 100m
300m
500m
300ft
1000ft
1500ft
GBC-38A100
GBC-38A300
GBC-38A500
305381
305383
305385
Note 1: Use with bonder such as Shinkawa SBB-1 or equivalent. Minimal deviation of ball neck height after bumping with steady bump shape.
Note 2: Low deterioration of shear strength during aging test at 200°C.
Note 3: See explanation of difference between bumping wire and bonding wire.
Note 4: GBC bumping wire made in Japan.
Note 5: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm
Note 6: Green=Start • Red=End.

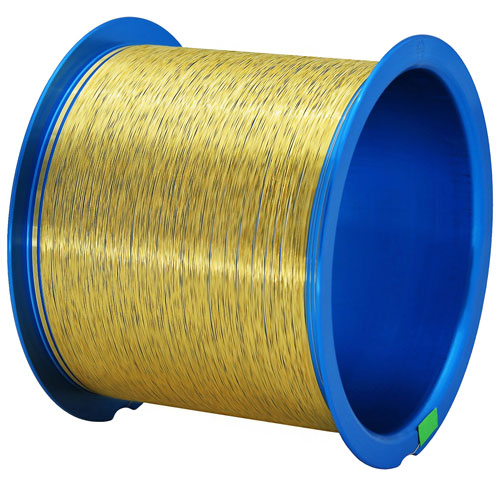

   GBE Type - 4N Gold (Au) Bumping Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
GBE 4N Gold
Au99.99%
Bumping Wire
Ø 15µm
(Ø 0.6 mil)
≥4.5 gf ≥44 mN 1.5~4.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-15A100
GBE-15A300
GBE-15A500
301151
301153
301155
Ø 18µm
(Ø 0.7 mil)
≥6.5 gf ≥64 mN 1.5~4.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-18A100
GBE-18A300
GBE-18A500
301181
301183
301185
Ø 20µm
(Ø 0.8 mil)
≥8.0 gf ≥78 mN 1.5~4.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-20A100
GBE-20A300
GBE-20A500
301201
301203
301205
Ø 25µm
(Ø 1.0 mil)
≥12.6 gf ≥124 mN 1.5~5.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-25A100
GBE-25A300
GBE-25A500
301251
301253
301255
Ø 30µm
(Ø 1.2 mil)
≥18.01 gf ≥178 mN 1.5~5.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-30A100
GBE-30A300
GBE-30A500
301301
301303
301305
Ø 32µm
(Ø 1.25 mil)
≥20.6 gf ≥202 mN 1.5~5.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-32A100
GBE-32A300
GBE-32A500
301321
301323
301325
Ø 35µm
(Ø 1.4 mil)
≥24.6 gf ≥241 mN 1.5~6.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-35A100
GBE-35A300
GBE-35A500
301351
301353
301355
Ø 38µm
(Ø 1.5 mil)
≥29.0 gf ≥284 mN 1.5~6.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-38A100
GBE-38A300
GBE-38A500
301381
301383
301385
Ø 50µm
(Ø 2.0 mil)
≥50.0 gf ≥525 mN 1.5~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GBE-50A100
GBE-50A300
GBE-50A500
301501
301503
301505
Ø 62.5µm
(Ø 2.5 mil)
≥-- gf ≥-- mN 1.0~7.0% 100m 300ft GBE-63B100 301631
Ø 75µm
(Ø 3.0 mil)
≥-- gf ≥-- mN 1.0~7.0% 100m 300ft GBE-75B100 301751
Note 1: Use with bonder such as Shinkawa SBB-1 or equivalent. Minimal deviation of ball neck height after bumping with steady bump shape.
Note 2: Low deterioration of shear strength during aging test at 200°C.
Note 3: No bond pad damage after bonding with Type GBE.
Note 4: See explanation of difference between bumping wire and bonding wire.
Note 5: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm , 62.5µm , 75µm .
Note 6: Green=Start • Red=End.


   GFD Type - 4N Gold (Au) High Medium Strength for Fine Pitch when Low-Loop is Not Required
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
GFD 4N Gold
Au99.99%
High Med
Strength
Fine-Pitch
Wire
Ø 15µm
(Ø 0.6 mil)
3.3~6.1 gf 32~60 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GFD-15A100
GFD-15A300
GFD-15A500
306151
306153
306155
Ø 18µm
(Ø 0.7 mil)
4.8~8.8 gf 47~86 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GFD-18A100
GFD-18A300
GFD-18A500
306181
306183
306185
Ø 20µm
(Ø 0.8 mil)
5.9~10.8 gf 58~106 mN 1.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GFD-20A100
GFD-20A300
GFD-20A500
306201
306203
306205
Ø 25µm
(Ø 1.0 mil)
9.2~16.9 gf 90~166 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GFD-25A100
GFD-25A300
GFD-25A500
306251
306253
306255
Ø 30µm
(Ø 1.2 mil)
13.2~24.4 gf 129~239 mN 2.0~7.0% 100m
300m
500m
300ft
1000ft
1500ft
GFD-30A100
GFD-30A300
GFD-30A500
306301
306303
306305
Note 1: Small deformation of squashed ball by ultrasonic frequency bonder such as Shinkawa UTC-3000.
Note 2: Wide actual bond area with suitable ultrasonic power. Applicable for narrow pad pitch bonding.
Note 3: Use for pitch greater than 45um. Single ball bond such as QFP, BGA and CSP Packages.
Note 4: High Medium strength wire for fine-pitch applications where low looping is not required.
Note 5: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm .
Note 6: Green=Start • Red=End.


   C Type - 4N Gold (Au)
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
C 4N Gold
Au99.99%
Ø 20µm
(Ø 0.8 mil)
4.5~8.0 gf 44~78 mN 2.0~6.0% 100m
300m
300ft
1000ft
C-20A100
C-20A300
340201
340203
Ø 25µm
(Ø 1.0 mil)
7.5~11.5 gf 74~113 mN 2.0~6.0% 100m
300m
300ft
1000ft
C-25A100
C-25A300
340251
340253
Ø 30µm
(Ø 1.2 mil)
11.0~15.5 gf 108~152 mN 2.0~9.0% 100m
300m
300ft
1000ft
C-30A100
C-30A300
340301
340303
Ø 32µm
(Ø 1.25 mil)
13.0~18.0 gf 127~177 mN 3.0~9.0% 100m
300m
300ft
1000ft
C-32A100
C-32A300
340321
340323
Ø 33µm
(Ø 1.3 mil)
13.0~19.0 gf 127~185 mN 3.0~9.0% 100m
300m
300ft
1000ft
C-33A100
C-33A300
340331
340333
Ø 35µm
(Ø 1.4 mil)
15.0~25.0 gf 147~245 mN 3.0~9.0% 100m
300m
300ft
1000ft
C-35A100
C-35A300
340351
340353
Ø 38µm
(Ø 1.5 mil)
18.0~28.0 gf 177~275 mN 3.0~10.0% 100m
300m
300ft
1000ft
C-38A100
C-38A300
340381
340383
Note 1: Universal soft wire.
Note 2: Large process window for second bond where long HAZ is suitable.
Note 3: Popular for discrete devices such as LED and medical device applications. Replacement for AW77.
Note 4: Beryllium (Be) doping stabilizing agent.
Note 5: "Drawn/non-annealed" available on special order for non-wirebonding applications.
Note 6: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm .
Note 7: Green=Start • Red=End.


   FA Type - 4N Gold (Au)
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
FA 4N Gold
Au99.99%
Soft Touch
Wire
Ø 20µm
(Ø 0.8 mil)
5.0~8.7 gf 49~85 mN 2.0~6.0% 100m
300m
300ft
1000ft
FA-20A100
FA-20A300
330201
330203
Ø 25µm
(Ø 1.0 mil)
7.7~13.5 gf 76~132 mN 2.0~7.0% 100m
300m
300ft
1000ft
FA-25A100
FA-25A300
330251
330253
Ø 30µm
(Ø 1.2 mil)
11.1~19.5 gf 109~191 mN 2.0~9.0% 100m
300m
300ft
1000ft
FA-30A100
FA-30A300
330301
330303
Ø 32µm
(Ø 1.25 mil)
12.7~22.2 gf 125~218 mN 3.0~9.0% 100m
300m
300ft
1000ft
FA-32A100
FA-32A300
330321
330323
Ø 35µm
(Ø 1.4 mil)
15.2~26.5 gf 149~260 mN 3.0~9.0% 100m
300m
300ft
1000ft
FA-35A100
FA-35A300
330351
330353
Ø 38µm
(Ø 1.5 mil)
17.9~31.3 gf 176~307 mN 4.0~12.0% 100m
300m
300ft
1000ft
FA-38A100
FA-38A300
330381
330383
Ø 50µm
(Ø 2.0 mil)
30.9~54.2 gf 302~530 mN 4.0~14.0% 100m
300m
300ft
1000ft
FA-50A100
FA-50A300
330501
330503
Note 1: Soft wire on bond pad.
Note 2: Good for rolling into flat ribbon.
Note 3: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm .
Note 4: Green=Start • Red=End.


    SEA, SEB, SEC Type - Silver (Ag) Alloy Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
SEA Ag
Silver
Ø 15µm
(Ø 0.6 mil)
2.8~5.6 gf 27~55 mN 1.0~8.0% 300m
500m
1000ft
1500ft
SEA-15A300
SEA-15A500
501153
501155
Ø 18µm
(Ø 0.7 mil)
4.1~8.0 gf 40~78 mN 1.0~8.0% 300m
500m
1000ft
1500ft
SEA-18A300
SEA-18A500
501183
501185
Ø 20µm
(Ø 0.8 mil)
5.1~10.0 gf 50~98 mN 1.0~8.0% 300m
500m
1000ft
1500ft
SEA-20A300
SEA-20A500
501203
501205
Ø 25µm
(Ø 1.0 mil)
7.8~15.4 gf 78~151 mN 1.0~8.0% 300m
500m
1000ft
1500ft
SEA-25A300
SEA-25A500
501253
501255
Ø 30µm
(Ø 1.20 mil)
11.1~21.9 gf 109~215 mN 1.0~10.0% 300m
500m
1000ft
1500ft
SEA-30A300
SEA-30A500
501303
501305
Note 1: Good bondability with reduced material cost compared to gold.
Note 2: High reflectivity in short wavelength range.
Note 3: SEA is original Ag base alloy wire. Composition around 89.5% Ag, 7.0% Au and 3.5% Pd.
Note 4: SEB Type offers low resistivity similar to 2N Au wire.
Note 5: SEC Type has softer FAB hardness and low resistivity similar to 4N Au wire.
Note 6: For SEB Type, change 3rd digit in order number to "2"   •   For SEC Type, change 3rd digit in order number to "3" .
Note 7: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm .
Note 8: Green=Start • Red=End.

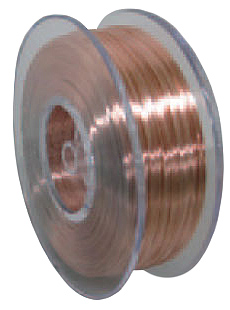

   CLR-1AT Type - Palladium (Pd) Coated Copper (4N Cu) with Gold (Au) Flash Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
CLR-1AT 4N Cu
Pd Coated
Au Flash
Ø 15µm
(Ø 0.6 mil)
2.0~5.0 gf 20~49 mN 3.0~13.0% 100m
300m
1000m
300ft
1000ft
3000ft
CLR1AT-15N100
CLR1AT-15N300
CLR1AT-15N500
700151
700153
700155
Ø 18µm
(Ø 0.7 mil)
3.2~7.2 gf 31~71 mN 5.0~15.0% 100m
300m
500m
300ft
1000ft
1500ft
CLR1AT-18N100
CLR1AT-18N300
CLR1AT-18N500
700181
700183
700185
Ø 20µm
(Ø 0.8 mil)
4.0~8.9 gf 39~87 mN 5.0~15.0% 100m
300m
500m
300ft
1000ft
1500ft
CLR1AT-20N100
CLR1AT-20N300
CLR1AT-20N500
700201
700203
700205
Ø 25µm
(Ø 1.0 mil)
6.3~14.0 gf 62~137 mN 5.0~15.0% 100m
300m
500m
300ft
1000ft
1500ft
CLR1AT-25N100
CLR1AT-25N300
CLR1AT-25N500
700251
700253
700255
Ø 30µm
(Ø 1.2 mil)
9.1~20.2 gf 88~198 mN 7.0~20.0% 100m
300m
500m
300ft
1000ft
1500ft
CLR1AT-30N100
CLR1AT-30N300
CLR1AT-30N500
700301
700303
700305
Ø 32µm
(Ø 1.25 mil)
10.3~22.9 gf 101~225 mN 7.0~20.0% 100m
300m
500m
300ft
1000ft
1500ft
CLR1AT-32N100
CLR1AT-32N300
CLR1AT-32N500
700321
700323
700325
Ø 38µm
(Ø 1.5 mil)
14.4~32.2 gf 141~316 mN 7.0~20.0% 100m
300m
500m
300ft
1000ft
1500ft
CLR1AT-38N100
CLR1AT-38N300
CLR1AT-38N500
700381
700383
700385
Ø 50µm
(Ø 2.0 mil)
29.2~60.4 gf 286~592 mN 10.0~25.0% 100m
300m
500m
300ft
1000ft
1500ft
CLR1AT-50N100
CLR1AT-50N300
CLR1AT-50N500
700501
700503
700505
Note 1: Original chemistry Pd (Palladium) coating improves bonding. Pd coating is superior to bare copper wire. Provides a wider bonding process window.
Excellent reliability. High Performance. Stable bonding
Note 2: Pd coating (2.1~3.5% by wieght) controls oxidation build-up on the surface of the copper wire. Au coating ~70 nanometers.
Note 3: Standard Tolerance: Ø15~38μm ±1 μm   •   Ø40~50μm ±2μm
Note 4: Extends HAST reliability. Prevents corrosion of the bonded wire span against halide attack from molding compound.
Note 5: Requires grounded wire bonding equipment. Stable bonding with either N2 or Forming Gas 95/5 (N95%-H5%).
Note 6: Also available as type CLR2-2AT (708xxx)
Note 7: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 30µm , 32µm , 35µm , 38µm , 40µm , 50µm
Note 8: Green=Start • Red=End.


   CA-1 Type - Copper (2N Cu) Alloy Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
CA-1 2N Cu
Alloy

Ø 15µm
(Ø 0.6 mil)
2.4~5.4 gf 23~53 mN 7.0~17.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-15N100
CA1-15N300
CA1-15N500
701151
701153
701155
Ø 18µm
(Ø 0.7 mil)
3.4~7.6 gf 33~75 mN 7.0~17.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-18N100
CA1-18N300
CA1-18N500
701181
701183
701185
Ø 20µm
(Ø 0.8 mil)
4.2~9.5 gf 41~93 mN 7.0~17.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-20N100
CA1-20N300
CA1-20N500
701201
701203
701205
Ø 25µm
(Ø 1.0 mil)
6.5~14.5 gf 64~143 mN 8.0~20.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-25N100
CA1-25N300
CA1-25N500
701251
701253
701255
Ø 32µm
(Ø 1.25 mil)
10.9~24.4 gf 107~239 mN 9.0~22.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-32N100
CA1-32N300
CA1-32N500
701321
701323
701325
Ø 38µm
(Ø 1.5 mil)
15.2~33.9 gf 149~332 mN 9.0~22.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-38N100
CA1-38N300
CA1-38N500
701381
701383
701385
Ø 50µm
(Ø 2.0 mil)
28.5~59.9 gf 279~587 mN 12.0~27.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-50N100
CA1-50N300
CA1-50N500
701501
701503
701505
Ø 60µm
(Ø 2.4 mil)
41.0~86.2 gf 402~845 mN 12.0~27.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-60N100
CA1-60N300
CA1-60N500
701601
701603
701605
Ø 70µm
(Ø 2.8 mil)
55.8~117.4 gf 547~1151 mN 12.0~27.0% 100m
300m
500m
300ft
1000ft
1500ft
CA1-70N100
CA1-70N300
CA1-70N500
701701
701703
701705
Note 1: Cu Alloy with high bond reliability and wide bonding window. Low Resistivity. Softer FAB.
Note 2: Standard Tolerance: Ø15~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~70μm ±3μm
Note 3: Requires grounded wire bonding equipment. Stable bonding with Forming Gas 95/5 (Nitrogen-95%-Hydrogen-5%).
Note 4: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 30µm , 32µm , 38µm , 40µm , 50µm , 60µm , 70µm .
Note 5: Green=Start • Red=End.


   CFB-1 Type - 4N Copper (Cu) Bonding Wire
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
CFB-1 Cu
4N

Ø 18µm
(Ø 0.7 mil)
3.6~7.8 gf 35~76 mN 7.0~17.0% 100m
300m
500m
300ft
1000ft
1500ft
CFB1-18N100
CFB1-18N300
CFB1-18N500
702181
702183
702185
Ø 20µm
(Ø 0.8 mil)
4.4~9.6 gf 43~94 mN 7.0~17.0% 100m
300m
500m
300ft
1000ft
1500ft
CFB1-20N100
CFB1-20N300
CFB1-20N500
702201
702203
702205
Ø 25µm
(Ø 1.0 mil)
6.8~14.8 gf 67~145 mN 8.0~20.0% 100m
300m
500m
300ft
1000ft
1500ft
CFB1-25N100
CFB1-25N300
CFB1-25N500
702251
702253
702255
Ø 32µm
(Ø 1.25 mil)
11.3~24.8 gf 111~243 mN 12.0~24.0% 100m
300m
500m
300ft
1000ft
1500ft
CFB1-32N100
CFB1-32N300
CFB1-32N500
702321
702323
702325
Ø 38µm
(Ø 1.5 mil)
15.8~34.5 gf 155~338 mN 12.0~24.0% 100m
300m
500m
300ft
1000ft
1500ft
CFB1-38N100
CFB1-38N300
CFB1-38N500
702381
702383
702385
Ø 50µm
(Ø 2.0 mil)
26.5~57.9 gf 260~568 mN 14.0~26.0% 100m
300m
500m
300ft
1000ft
1500ft
CFB1-50N100
CFB1-50N300
CFB1-50N500
702501
702503
702505
Ø 60µm
(Ø 2.4 mil)
38.2~83.4 gf 375~818 mN 14.0~26.0% 100m
300m
500m
300ft
1000ft
1500ft
CFB1-60N100
CFB1-60N300
CFB1-60N500
702601
702603
702605
Ø 70µm
(Ø 2.8 mil)
52.0~113.5 gf 510~1131 mN 14.0~26.0% 100m
300m
500m
300ft
1000ft
1500ft
CFB1-70N100
CFB1-70N300
CFB1-70N500
702701
702703
702705
Note 1: Standard bare Cu wire and wide bonding window. Low Resistivity. Stable continuous bond-ability.
Note 2: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~70μm ±3μm
Note 3: Requires grounded wire bonding equipment. Stable bonding with Forming Gas 95/5 (Nitrogen-95%-Hydrogen-5%).
Note 4: Wire diameter available: 18µm , 20µm , 23µm , 25µm , 30µm , 32µm , 38µm , 40µm , 50µm , 60µm , 70µm .
Note 5: Green=Start • Red=End.


 CP-1 Type - Copper (Cu) Heavy Power Bonding Wire
Type Alloy Ø Diameter
±7% μm
Breaking Load
(gf)
Breaking Load
(N)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
CP-1 Power
Copper

4N
Ø 100µm
(Ø 4 mil)
102~305 gf 1.0~3.0 N 5~35% 100m 300ft CP1-100P100 707001
Ø 125µm
(Ø 5 mil)
153~356 gf 1.5~3.5 N 5~35% 100m 300ft CP1-125P100 707011
Ø 150µm
(Ø 6 mil)
255~560gf 2.5~5.5 N 5~35% 100m 300ft CP1-150P100 707021
Ø 200µm
(Ø 8 mil)
510~917 gf 5.0~9.0 N 5~35% 100m 300ft CP1-200P100 707041
Ø 250µm
(Ø 10 mil)
816~1427 gf 8.0~14.0 N 5~35% 100m 300ft CP1-250P100 707051
Ø 300µm
(Ø 12 mil)
1326~2039 gf 13.0~20.0 N 5~35% 100m 300ft CP1-300P100 707061
Ø 380µm
(Ø 15 mil)
2040~3059 gf 20.0~30.0 N 10~40% 100m 300ft CP1-380P100 707081
Ø 400µm
(Ø 16 mil)
2346~3365 gf 23.0~33.0 N 10~40% 100m 300ft CP1-400P100 707091
Ø 500µm
(Ø 20 mil)
4079~5302 gf 40.0~52.0 N 10~50% 100m 300ft CP1-500P100 707111
Note 1: Heavy Copper Bonding Wire. Excellent electrical conductivity (40% better than aluminum). Annealed. Heat treated. Stress relieved (SR Type).
Note 2: High fusing current (30% better than aluminum).
Note 3: Standard Tolerance: Ø100~150μm ±5μm   •   Ø200~450μm ±7μm   •   Ø500μm ±10μm
Note 4: Wire diameter available: 100µm , 125µm , 150µm , 200µm , 250µm , 300µm , 380µm , 450µm , 500µm

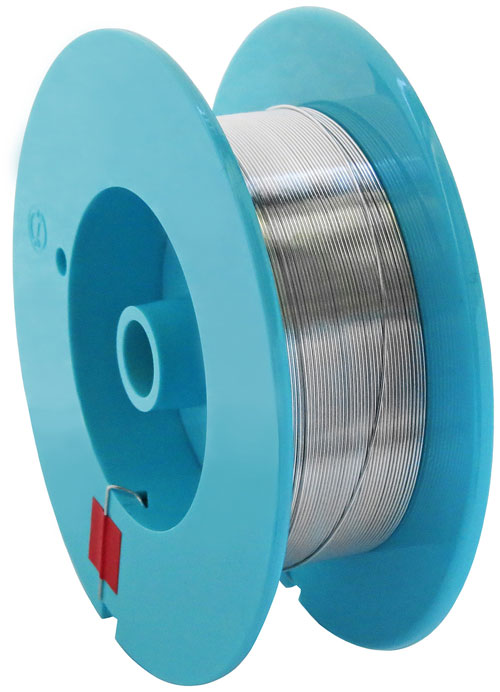

Note 5: 100~200um Blue Spool No.88B (Code "P")  •   250um~500um Blue Spool No.88 (Code "P")
Note 6: Green=Start • Red=End.


   CPR-1 Type - Copper (Cu) Bonding Ribbon   •   Other Sizes
Type Alloy Width Thickness Breaking Load
(gf)
Breaking Load
(N)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
CPR-1 Cu Ribbon 500µm
±50µm
100µm
±10µm
Call Call ≥10% 100m
200m
300ft
600ft
CPR1-500x100P100
CPR1-500x100P200
773461
773462
1000µm
±100µm
Call Call ≥10% 100m
200m
300ft
600ft
CPR1-1000x100P100
CPR1-1000x100P200
773491
773492
1500µm
±150µm
Call Call ≥10% 100m
200m
300ft
600ft
CPR1-1500x100P100
CPR1-1500x100P200
773421
773422
2000µm
±200µm
Call Call ≥10% 100m
200m
300ft
600ft
CPR1-2000x100P100
CPR1-2000x100P200
773411
773412
1000µm
±100µm
150µm
±15µm
Call Call ≥10% 100m 300ft CPR1-1000x150P100 773641
1500µm
±150µm
Call Call ≥10% 100m 300ft CPR1-1500x150P100 773651
2000µm
±200µm
Call Call ≥10% 100m 300ft CPR1-2000x150P100 773661
1000µm
±100µm
200µm
±20µm
Call Call ≥10% 100m 300ft CPR1-1000x200P100 773841
1500µm
±150µm
Call Call ≥10% 100m 300ft CPR1-1500x200P100 773851
2000µm
±200µm
Call Call ≥10% 100m 300ft CPR1-2000x200P100 773861
Note 1: CPR-1 Type Cu ribbon is fabricated using a dry process. No lubrication oils are introduced during fabrication. Excellent corrosion resistance.
Note 2: Tanaka Cu ribbon is made using a rolled process. Edges are smooth without sharp edges. Good surface smoothness.
Note 3: Tanaka's specially formulated winding process assures consistent de-spooling and smooth bonding. Not parallel winding.
Note 4: Flat Cu ribbon provides an excellent solution for power devices.
Note 5: Spool code 4th character from end of part number: "P" = No.88 Spool. "R" = No.120 Spool.
Note 6: CPR-1 Type Cu ribbon wire made in Japan.
Note 7: Equivalent Round Wires
Note 8: Green=Start • Red=End.


   TABN Type - Aluminum Al-1% Si Wedge to Wedge Bonding Wire   •   See TABN Type Half-Inch Spools for Manual Wire Bonders
Type Alloy Ø Diameter
±1% μm
Breaking Load
(gf)
Breaking Load
(mN)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
TABN Aluminum
Al-1% Si
With Nickel Doping
Ø 18µm
(Ø 0.7 mil)
6.7~7.5 gf 66~71 mN 0.5~4.5% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
TABN-18H25
TABN-18H50
TABN-18A100
TABN-18A300
TABN-18A500
403189
403180
403181
403183
403185
Ø 20µm
(Ø 0.8 mil)
8.0~10.0 gf 78~98 mN 0.5~4.5% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
TABN-20H25
TABN-20H50
TABN-20A100
TABN-20A300
TABN-20A500
403209
403200
403201
403203
403205
Ø 25µm
(Ø 1.0 mil)
13.0~15.0 gf 127~147 mN 0.5~4.5% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
TABN-25H25
TABN-25H50
TABN-25A100
TABN-25A300
TABN-25A500
403259
403250
403251
403253
403255
Ø 30µm
(Ø 1.20 mil)
17.0~19.0 gf 167~186 mN 0.5~4.5% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
TABN-30H25
TABN-30H50
TABN-30A100
TABN-30A300
TABN-30A500
403349
403300
403301
403303
403305
Ø 32µm
(Ø 1.25 mil)
19.0~21.0 gf 186~206 mN 0.5~4.5% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
TABN-32H25
TABN-32H50
TABN-32A100
TABN-32A300
TABN-32A500
403329
403320
403321
403323
403325
Ø 33µm
(Ø 1.3 mil)
19.0~21.0 gf 186~206 mN 0.5~4.5% 100m
300m
500m
300ft
1000ft
1500ft
TABN-33A100
TABN-33A300
TABN-33A500
403331
403333
403335
Ø 35µm
(Ø 1.4 mil)
26.0~29.0 gf 255~284 mN 0.5~5.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
TABN-35H25
TABN-35H50
TABN-35A100
TABN-35A300
TABN-35A500
403359
403350
403351
403353
403355
Ø 38µm
(Ø 1.5 mil)
31.0~34.0 gf 304~333 mN 0.5~5.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
TABN-38H25
TABN-38H50
TABN-38A100
TABN-38A300
TABN-38A500
403389
403380
403381
403383
403385
Ø 45µm
(Ø 1.8 mil)
40.5~45.5 gf 390~440 mN 0.5~6.0% 100m
300m
500m
300ft
1000ft
1500ft
TABN-45A100
TABN-45A300
TABN-45A500
403451
403453
403455
Ø 50µm
(Ø 2.0 mil)
47.0~53.0 gf 461~520 mN 0.5~6.0% 25m
50m
100m
300m
500m
75ft
150ft
300ft
1000ft
1500ft
TABN-50H25
TABN-50H50
TABN-50A100
TABN-50A300
TABN-50A500
403509
403500
403501
403503
403505
Ø 50µm
(Ø 2.0 mil)
38.0~43.0 gf 372~420 mN 2.5~5.5% 100m 300ft TABN-50A100
BL38~43 (Soft)
403502
Ø 75µm
(Ø 3.0 mil)
115.0~135.0 gf 1090~1325 mN 0.5~6.0% 100m
300m
500m
300ft
1000ft
1500ft
TABN-75A100
TABN-75A300
TABN-75A500
403751
403753
403755
Ø 80µm
(Ø 3.2 mil)
130.0~150.0 gf 1275~1471 mN 0.5~6.0% 100m
300m
500m
300ft
1000ft
1500ft
TABN-80A100
TABN-80A300
TABN-80A500
403801
403803
403805
Note 1: Uniform distribution of Si and stable mechanical property. Annealed. Heat treated. Stress relieved (SR type).
Note 2: TABN has good corrosion resistance under PCT (Pressure Cooker Test) with high humidity and temperature.
Note 3: TABN applications include Wedge to Wedge bonding.
Note 4: TABN (with ~50ppm Nickel doping) has replaced old Type TABW (without nickel doping).
Note 5: Old Type TABW (without nickel doping) is not recommended for pressure cooker test with high humidity at 260°C.
Note 6: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~80μm ±3μm
Note 7: Wire diameter available: 18µm , 20µm , 25µm , 30µm , 32µm , 33µm , 35µm , 38µm , 40µm , 45µm , 50µm , 75µm , 80µm
Note 7: Green=Start • Red=End.


TANW Type - Aluminum (Al) Large Diameter Power Bonding Wire
Type Alloy Ø Diameter Breaking Load
(gf)
Breaking Load
(N)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
TANW Al

Soft 1
Power
Bonding Wire
Ø 100µm
(Ø 4 mil)
50~80 gf 0.49~0.78 N 10~30% 100m
300m
500m
300ft
1000ft
1500ft
TANW-100K100
TANW-100K300
TANW-100K500
405001
405003
405005
Ø 125µm
(Ø 5 mil)
70~120 gf 0.69~1.18 N 10~30% 100m
300m
500m
300ft
1000ft
1500ft
TANW-125K100
TANW-125K300
TANW-125K500
405011
405013
405015
Ø 150µm
(Ø 6 mil)
100~200 gf 0.98~1.96 N 10~30% 100m
300m
500m
300ft
1000ft
1500ft
TANW-150K100
TANW-150K300
TANW-150K500
405021
405023
405025
Ø 175µm
(Ø 7 mil)
140~240 gf 1.37~2.35 N 10~30% 100m
300m
500m
300ft
1000ft
1500ft
TANW-175K100
TANW-175K300
TANW-175K500
405031
405033
405035
Al

Soft 2
Power
Bonding Wire
Ø 200µm
(Ø 8 mil)
140~200 gf 1.37~1.96 N 10~30% 100m
300m
500m
300ft
1000ft
1500ft
TANW-200K100
TANW-200K300
TANW-200K500
405041
405043
405045
Ø 250µm
(Ø 10 mil)
210~300 gf 2.06~2.94 N 10~30% 100m
300m
500m
300ft
1000ft
1500ft
TANW-250K100
TANW-250K300
TANW-250K500
405051
405053
405055
Ø 300µm
(Ø 12 mil)
300~420 gf 2.94~4.12 N 10~30% 100m
300m
500m
300ft
1000ft
1500ft
TANW-300K100
TANW-300K300
TANW-300K500
405061
405063
405065
Ø 350µm
(Ø 14 mil)
450~550 gf 4.41~5.39 N 10~30% 100m
300m
500m
300ft
1000ft
1500ft
TANW-350K100
TANW-350K300
TANW-350K500
405071
405073
405075
Ø 380µm
(Ø 15 mil)
500~700 gf 4.90~6.86 N 10~30% 100m
200m
300m
300ft
600ft
1000ft
TANW-380K100
TANW-380K200
TANW-380K300
405081
405082
405083
Ø 400µm
(Ø 16 mil)
550~750 gf 5.39~7.35 N 10~30% 100m
200m
300m
300ft
600ft
1000ft
TANW-400K100
TANW-400K200
TANW-400K300
405091
405092
405093
Ø 450µm
(Ø 18 mil)
700~850 gf 6.86~8.34 N 10~30% 100m
200m
300m
300ft
600ft
1000ft
TANW-450K100
TANW-450K200
TANW-450K300
405101
405102
405103
Ø 500µm
(Ø 20 mil)
800~1100 gf 7.85~10.79 N 10~30% 100m
200m
300m
300ft
600ft
1000ft
TANW-500K100
TANW-500K200
TANW-500K300
405111
405112
405113
Ø 600µm
(Ø 24 mil)
1200~1700 gf 11.76~16.67 N 10~40% 100m
200m
300ft
600ft
TANW-600K100
TANW-600K200
405121
405122
Note 1: Softest 4N large diameter aluminum (Al) bonding wire for excellent bondability in power devices.
Note 2: Doped with 50ppm Nickel for excellent surface corrosion resistance.
Note 3: Soft annealed to control grain structure to achieve best EL/BL for stable wire bonding process.
Note 4: New clear spools with 11mm shaft: 88K and 120K   •   Old blue spools with 10mm shaft: 100um~200um Spool No.88B   •   250um~600um Spool No.88.
Note 5: Wire diameter available: 100µm , 125µm , 150µm , 175µm , 200µm , 250µm , 300µm , 350µm , 380µm , 400µm , 450µm , 500µm , 600µm .
Note 6: Wire Tolerance: 100µm ~ 175µm ±5% μm  •  200µm ~ 450µm ±7% μm  •  500µm ~ 600µm ±10% μm .
Note 7: Green=Start • Red=End.


TANW-HARD Type - Aluminum (Al) Large Diameter Power Bonding Wire for Batteries
Type Alloy Ø Diameter Breaking Load
(gf)
Breaking Load
(N)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
TANW-HARD Al

HARD
Power
Bonding Wire
for Batteries
Ø 380µm
(Ø 15 mil)
750~1100 gf 7.6~ 11.3 N 15~40% 100m
200m
300m
300ft
600ft
1000ft
TANW-HARD-380K100
TANW-HARD-380K200
TANW-HARD-380K300
407081
407082
407083
Ø 400µm
(Ø 16 mil)
900~1400 gf 9.2~14.2 N 15~45% 100m
200m
300m
300ft
600ft
1000ft
TANW-HARD-400K100
TANW-HARD-400K200
TANW-HARD-400K300
407091
407092
407093
Ø 450µm
(Ø 18 mil)
1200~1700 gf 12.2~17.3 N 5~40% 100m
200m
300m
300ft
600ft
1000ft
TANW-HARD-450K100
TANW-HARD-450K200
TANW-HARD-450K300
407101
407102
407103
Ø 500µm
(Ø 20 mil)
1800~2200 gf 18.3~22.4 N 5~40% 100m
200m
300m
300ft
600ft
1000ft
TANW-HARD-500K100
TANW-HARD-500K200
TANW-HARD-500K300
407111
407112
407113
Note 1: Hard 4N large diameter aluminum (Al) bonding wire for excellent bondability in battery applications.
Note 2: Doped with 50ppm Nickel for excellent surface corrosion resistance.
Note 3: Special annealed to control grain structure to achieve best EL/BL for stable wire bonding process for Batteries.
Note 4: New clear spools with 11mm shaft: 88K
Note 5: Wire diameter available: 300µm , 350µm , 380µm , 400µm , 450µm , 500µm , 600µm .
Note 6: Wire Tolerance:200µm ~ 450µm ±7% μm  •  500µm ~ 600µm ±10% μm .
Note 7: Power Tools: Also available type TAWN-MID medium range BL and EL for power tool bonding applications.
Note 8: Green=Start • Red=End.


   TABR Type - Aluminum (Al) Bonding Ribbon   •   Other Sizes
Type Alloy Width Thickness Breaking Load
(gf)
Breaking Load
(N)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
TABR Al Ribbon 500µm
±50µm
100µm
±10µm
275~425 gf 2.70~4.17 N ≥10% 100m
200m
300ft
600ft
TABR-500x100P100
TABR-500x100P200
412461
412462
750µm
±50µm
413~638 gf 4.05~6.26 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-750x100P100
TABR-750x100P200
TABR-750x100P300
412481
412482
412483
1000µm
±50µm
550~850 gf 5.39~8.34 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-1000x100P100
TABR-1000x100P200
TABR-1000x100R300
412491
412492
412493
1500µm
±50µm
715~1225 gf 7.00~12.00 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-1500x100P100
TABR-1500x100P200
TABR-1500x100R300
412421
412422
412423
1000µm
±50µm
150µm
±15µm
675~1125 gf 6.62~11.03 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-1000x150P100
TABR-1000x150R200
TABR-1000x150R300
412641
412642
412643
1500µm
±75µm
1013~1688 gf 9.93~16.55 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-1500x150P100
TABR-1500x150R200
TABR-1500x150R300
412651
412652
412653
2000µm
±100µm
1350~2250 gf 13.24~22.06 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-2000x150P100
TABR-2000x150R200
TABR-2000x150R300
412661
412662
412663
1000µm
±50µm
200µm
±20µm
900~1500 gf 8.83~14.71 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-1000x200P100
TABR-1000x200R200
TABR-1000x200R300
412841
412842
412843
1250µm
±63µm
1206~2010 gf 11.83~19.71 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-1250x200P100
TABR-1250x200R200
TABR-1250x200R300
412871
412872
412873
1500µm
±75µm
1350~2250 gf 13.24~22.06 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-1500x200P100
TABR-1500x200R200
TABR-1500x200R300
412851
412852
412853
2000µm
±100µm
1800~3000 gf 17.65~29.42 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-2000x200P100
TABR-2000x200R200
TABR-2000x200R300
412861
412862
412863
1500µm
±75µm
250µm
±25µm
1688~2813 gf 16.55~27.59 N ≥10% 100m
200m
300m
300ft
600ft
1000ft
TABR-1500x250P100
TABR-1500x250R200
TABR-1500x250R300
412951
412952
412953
2000µm
±100µm
2250~3750 gf 22.06~36.77 N ≥10% 50m
100m
200m
150ft
300ft
600ft
TABR-2000x250P50
TABR-2000x250R100
TABR-2000x250R200
412960
412961
412962
1500µm
±75µm
300µm
±30µm
2025~3375 gf 19.86~33.10 N ≥10% 50m
100m
200m
150ft
300ft
600ft
TABR-1500x300P50
TABR-1500x300R100
TABR-1500x300R200
412980
412981
412982
2000µm
±100µm
2700~4500 gf 26.48~44.13 N ≥10% 50m
100m
200m
150ft
300ft
600ft
TABR-2000x300P50
TABR-2000x300R100
TABR-2000x300R200
412990
412991
412992
Note 1: TABR Type Al ribbon is fabricated using a dry process. No lubrication oils are introduced during fabrication. Excellent corrosion resistance.
Note 2: Tanaka Al ribbon is made using a rolled process. Edges are smooth without sharp edges. Good surface smoothness.
Note 3: Tanaka's specially formulated winding process assures consistent de-spooling and smooth bonding. Not parallel winding.
Note 4: Flat Al ribbon provides an excellent solution for power devices.
Note 5: Spool code 4th character from end of part number: "P" = No.88 Spool. "R" = No.120 Spool.
Note 6: TABR Type aluminum ribbon wire made in Japan.
Note 7: Equivalent Round Wires
Note 8: Green=Start • Red=End.


   AuR Type - Gold (Au) Bonding Ribbon 4N   •   See AuR Type Half-Inch Spools for Manual Wire Bonders   •   Other Sizes
Type Alloy Thickness Width Breaking Load
(gf)
Breaking Load
(N)
El
(%)
Length
Meters
Length
Feet
Part Number Order Nr
AuR Au Ribbon 12.7um
(0.5 mil)
25um
(1.0mil)
4.8~9.8 gf 48~96 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-25x12.7H10
AuR-25x12.7A50
326510
316510
38um
(1.5mil)
7.2~15.0 gf 71~147 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-38x12.7H10
AuR-38x12.7A50
326380
316380
50um
(2.0mil)
9.5~19.7 gf 94~193 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-50x12.7H10
AuR-50x12.7A50
326500
316500
75um
(3.0mil)
14.3~29.5 gf 141~289 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-75x12.7H10
AuR-75x12.7A50
326520
316520
100um
(4.0mil)
19.1~39.4 gf 188~386 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-100x12.7H10
AuR-100x12.7A50
326530
316530
125um
(5.0mil)
23.8~49.2 gf 234~482 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-125x12.7H10
AuR-125x12.7A50
326540
316540
150um
(6.0mil)
28.6~59.1 gf 281~579 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-150x12.7H10
AuR-150x12.7A50
326550
316550
200um
(8.0mil)
38.1~78.7 gf 373~770 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-200x12.7H10
AuR-200x12.7A50
326560
316560
25um
(1.0 mil)
50um
(2.0mil)
18.8~38.8 gf 185~380 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-50x25H10
AuR-50x25A50
326100
316100
50um
(2.0mil)
18.8~38.8 gf 185~380 mN ≥ 2.0% 30m 100ft AuR3-50x25A30
Be Doping
353103
75um
(3.0mil)
28.1~58.1 gf 276~569 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-75x25H10
AuR-75x25A50
326110
316110
100um
(4.0mil)
37.5~77.5 gf 368~760 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-100x25H10
AuR-100x25A50
326120
316120
125um
(5.0mil)
46.9~96.9 gf 460~950 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-125x25H10
AuR-125x25A50
326130
316130
150um
(6.0mil)
56.3~116.3 gf 553~1140 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-150x25H10
AuR-150x25A50
326140
316140
200um
(8.0mil)
75.0~155.0 gf 736~1520 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-200x25H10
AuR-200x25A50
326150
316150
250um
(10.0mil)
93.8~193.8 gf 920~1900 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-250x25H10
AuR-250x25A50
326160
316160
50um
(2.0 mil)
125um
(5.0mil)
93.8~193.8 gf 920~1900 mN ≥ 2.0% 10m
50m
33ft
150ft
AuR-125x50H10
AuR-125x50A50
326220
316220
Note 1: AuR Type Au Gold ribbon is fabricated using a dry process. No lubrication oils are introduced during fabrication. Excellent corrosion resistance.
Note 2: Tanaka AuR ribbon is made using a rolled process with stress relief (SR). Edges are smooth without sharp edges. Good surface smoothness.
Note 3: Tanaka's specially formulated winding process assures consistent de-spooling and smooth bonding. Not parallel winding.
Note 4: Flat Au ribbon provides an excellent solution for RF devices.
Note 5: Alternative flat Au ribbon with Be (Beryllium) additive is available as 353xxx AUR3 series.   •   Other Sizes
Note 6: AuR gold ribbon wire made in Japan.
Note 7: Green=Start • Red=End.





Spool Reference Dimensions
  Spool Dimensions (mm)   Box Dimensions & Spool Quantity
Spool
Material
Type A
Flange
Dia.
B
Shaft
Dia.
C
Hub
Dia.
D
Hub
Thick
E
Winding
Width
F
Overall
Width
Spool
Style
Part
Nbr
Code
Winding
Pattern
White
Inner Box
QTY Spools

L=7.25"
W=12.5"
H=4.0"
Small
Outer Box
QTY Spools

L=8.25"
W=13.25"
H=10"
Medium
Outer Box
QTY Spools

L=13.25"
W=24"
H=10"
Large
Outer Box
QTY Spools

L=13.25"
W=24"
H=14"
Aluminum
Spools
AL-2(W)
2x1 Inch
58.5mm 48.8 50.3 0.75 26.4 27.9 AL-2(W)
AL-2
A Round
Wire
Cross
Winding
--
Ribbon
Parallel
Winding
20x Spools 40x Spools 120x Spools 180x Spools
AL-2(WNi)
2x1 Inch
Conductive Hub
58.5mm 48.8 50.3 0.75 26.4 27.9 AL-2(WNi) C Round
Wire
Cross
Winding
--
Ribbon
Parallel
Winding
20x Spools 40x Spools 120x Spools 180x Spools
AL4(W)
2x2 Inch
58.5mm 48.8 50.3 0.75 45.5 47.0 AL-4(W) B Round
Wire
Cross
Winding
--
Ribbon
Parallel
Winding
12x Spools 24x Spools 72x Spools 108x Spools
AL-4(WNi)
2x2 Inch
Conductive Hub
58.5mm 48.8 50.3 0.75 45.5 47.0 AL-4(WNi) N Round
Wire
Cross
Winding
--
Ribbon
Parallel
Winding
10x Spools 20x Spools 60x Spools 90x Spools
AL-1/2
Half-Inch
17.4mm 12.7 13.5 0.40 18.3 19.1 AL-1/2 H Round
Wire
and
Ribbon
Parallel
Winding
5x spools - - -
Polycarbonate
Spools
No.88
3.5 Inch
88mm 10 50 3 25 31 No.88

Ø250~500um
TANW

CP-1 & CPR-1

TABR (ALL)
P Round
Wire
and
Ribbon
Parallel
Winding
10x Spools 50x Spools - -
No.88B
3.5 Inch
89mm 10 71 3 25 31 No.88B
Ø100~200um
TANW
P Round
Wire
and
Ribbon
Parallel
Winding
10x Spools 50x Spools - -
No.88C
3.5 Inch
88mm 11 50 3 25 31 No.88C
Ø100~200um
Type-Y
P Round
Wire
and
Ribbon
Parallel
Winding
10x Spools 50x Spools - -
No.88K
3.5-inch
88mm 11 50 3 31 37 No.88K
Ø100~600um
TANW
K Round
Wire
and
Ribbon
Parallel
Winding
10x Spools 50x Spools - -
No.120
4.75 Inch
120mm 10 54 4 30 38 No.120

Ø100~600um
TANW

CP-1 (ALL)

TABR(ALL)
R Round
Wire
and
Ribbon
Parallel
Winding
5x Spools 20x Spools - -
No.120K
4.75 Inch
120mm 11 64 4 30 38 No.120K

Ø100~600um
TANW
T Round
Wire
and
Ribbon
Parallel
Winding
5x Spools 20x Spools - -
Note 1: Copper Cu and PCC Pd coated Cu requires grounded (Conductive) Spool.
Note 2: Round Wire is wound forward/Cross Pattern Winding (Cross wound-cross hatch wind)
Note 3: Ribbon Wire is wound forward/Parallel Winding
Note 4: Start wire on spool with  Green tape.   •   End wire on spool with Red tape.
Note 5: 2x white inner boxes fit into small outer box. 6x white inner boxes fit into medium outer box. 9x white inner boxes fit into large outer box.


± Tolerance Table
Alloy Ø Diameter Tolerance Spool
Au Gold

Type
GBC , GBE , GFC, GFD
GHA-2 , GLD, GLF , GMB
GMG , GMH-2 , GPG-2 , GPH
GSA , GSB , M3 , Y , C
Ø 15µm ~ 38µm
(Ø 0.6 ~ 1.5 mil)
±1 μm AL2(W) Code A

AL-4 Code B
Ø 40µm ~ 50µm
(Ø 1.6 ~ 2.0 mil)
±2 μm
Ø 60µm ~ 100µm
(Ø 2.4 ~ 4.0 mil)
±3 μm
Ø 125µm ~ 150µm
(Ø 5.0 ~ 6.0 mil)
±5 μm
Ag Silver

Type
SEA, SEB, SEC
Ø 15µm ~ 38µm
(Ø 0.6 ~ 1.5 mil)
±1 μm
Ø 40µm ~ 50µm
(Ø 1.6 ~ 2.0 mil)
±2 μm
Al-1%Si

Type
TABN
Ø 15µm ~ 38µm
(Ø 0.6 ~ 1.5 mil)
±1 μm
Ø 40µm ~ 50µm
(Ø 1.6 ~ 2.0 mil)
±2 μm
Ø 75µm ~ 80µm
(Ø ~ 3.0 mil)
±3 μm
Cu Copper
Bare & Plated

Type
CLR1-AT  •  CHR-6BT
CA-1  •  CFB-1
Ø 15µm ~ 38µm
(Ø 0.6 ~ 1.5 mil)
±1 μm AL-4(WNi)
Grounded
Code N
Ø 40µm ~ 50µm
(Ø 1.6 ~ 2.0 mil)
±2 μm
Ø 60µm ~ 70µm
(Ø 2.4 ~ 2.8 mil)
±3 μm
Power Aluminum

Type
TANW
Ø 100µm ~ 175µm
(Ø 4.0 ~ 7.0 mil)
±5 μm 100~175μm  • No. 88B
200~600μm • No.88
Polycarbonate
Code P
Ø 200µm ~ 450µm
(Ø 8.0 ~ 18 mil)
±7 μm
Ø 500µm ~ 600µm
(Ø 20 ~ 24 mil)
±10 μm
Flat Ribbon Al

Type
TABR
Width 0.8mm (32 mil)
Thick 0.1mm (4 mil)
W: ±0.050mm
T: ±0.015mm
No. 88  • No.88B
Polycarbonate
Code P
Width 1.0mm (32 mil)
Thick 0.1mm (4 mil)
W: ±0.050mm
T: ±0.020mm
Width 1.5mm (60 mil)
Thick 0.2mm (8 mil)
W: ±0.075mm
T: ±0.015mm
No. 120
Polycarbonate
Code R
Width 2.0mm (80 mil)
Thick 0.2mm (8 mil)
W: ±0.10mm
T: ±0.020mm


Handling Bonding Wire Spool  PDF   Green=Start • Red=End.


Difference between Gold Bump Wire and Gold Bonding Wire.
Note Feature Bump Wire Bonding Wire
1 Number of Bonds One Bond Only
To Die Pad or Substrate
Two Bonds
From Die Pad to Package.
2 Purpose/Application Single Au (gold) wire is squashed.
Wire is then reflowed (melted)
to form a bump for a flip chip.
Bonding from the die to the leadfame (or substrate) with a loop (wedge or stitch).
3 Repeatable Wire Break Bumping wire is intended to break
close to neck area of first bond.
Bonding wire has a longer HAZ
(heat affected zone) to permit the wire to be kinked or looped and pan out for next bond (wedge or stitch)
4 Grain Structure Dopants added for grain structure during annealing process to allow repeatable wire break after the stud bump formation to make wire softer for wire cut/break mode. Grain structure in bonding wire
enables formation of loop or kink.


Wedge Bonding vrs Ball Bonding Recommended Applications
Use the correct wire for Wedge or Ball Bonding


EL - Elongation Summary Gold Wire
Sorted by Type   PDF
Type Purity Ø15μm
0.6 mil
Ø18μm
0.7 mil
Ø20μm
0.8 mil
Ø23μm
0.9 mil
Ø25μm
1.0 mil
Ø28μm
1.1 mil
Ø30μm
1.2 mil
Ø32μm
1.25 mil
Ø35μm
1.4 mil
Ø38μm
1.5 mil
Ø50μm
2.0 mil
C 4N - - 2.0~6.0% 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~10% -
FA 4N - - 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~12% -
GBC 2N 1.5~4.0% 1.5~4.0% 1.5~4.0% 1.5~4.0% 1.5~5.0% 1.5~5.0% 1.5~5.0% 1.5~5.0% 1.5~6.0% 1.5~6.0% -
GBE 4N 1.5~4.0% 1.5~4.0% 1.5~4.0% 1.5~4.0% 1.5~5.0% 1.5~5.0% 1.5~5.0% 1.5~5.0% 1.5~6.0% 1.5~6.0% -
GFC 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% - - - -
GFD 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% - - - -
GHA-2 4N - - 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~9.0% -
GLD-H 4N 3.5% Max 3.5% Max 3.5% Max 3.5% Max 3.5% Max 3.5% Max 3.5% Max 3.5% Max 4.5% Max 4.5% Max 4.5% Max
GLD 4N 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~10% 3.0~10%
GLF 4N 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% - - - -
GMB-2 4N - - 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~10% -
GMG 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% - - - -
GMH 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% - - - -
GMH-2 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% - - - -
GPG 2N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% - - - -
GPG-2 2N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% -
GPG-3 2N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% - - - -
GPH 2N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% -
GSA 4N 1.0~6.0% 1.0~6.0% 1.0~7.0% 1.0~7.0% 1.0~7.0% 1.0~7.0% 1.5~8.5% 1.5~8.5% 1.5~8.5% 1.5~8.5% 1.5~8.5%
GSB 4N 1.0~6.0% 1.0~6.0% 1.0~7.0% 1.0~7.0% 1.0~7.0% 1.0~7.0% 1.5~8.5% - - - -
M3 4N 1.0~6.0% 1.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~9.0% 2.0~9.0% 3.0~9.0% 4.0~12% 4.0~15%
Y 4N - - 2.0~5.0% 2.0~6.0% 2.0~6.0% 2.0~6.0% 2.0~7.0% 3.0~7.0% 3.0~8.0% 4.0~8.0% -
Note 1: Actual elongation tends to be the middle of each range.
Example: The EL of Ø25μm GSA is shown as 1.0~7.0% in above table. However average Ø25μm GSA EL tests around 4%

BL - Breaking Load (g) Summary Gold Wire
Sorted by Type   PDF
Type Purity Ø15μm
0.6 mil
Ø18μm
0.7 mil
Ø20μm
0.8 mil
Ø23μm
0.9 mil
Ø25μm
1.0 mil
Ø28μm
1.1 mil
Ø30μm
1.2 mil
Ø32μm
1.25 mil
Ø35μm
1.4 mil
Ø38μm
1.5 mil
Ø50μm
2.0 mil
C 4N - - 4.5~8.0g 5.5~9.5g 7.5~11.5g 11.0~15.0g 11.0~15.5g 13.0~18.0g 15.0~25.0g 18.0~28.0g -
FA 4N - - 5.0~8.7g 6.5~11.5g 7.7~13.5g 9.7~17.0g 11.1~19.5g 12.7~22.2g 15.2~26.5g 17.9~31.3g -
GBC 2N ≥5.2g ≥8.2g ≥9.3g ≥10.0g ≥14.5g ≥17.0g ≥20.9g ≥23.8g ≥28.4g ≥33.5g -
GBE 4N ≥4.5g ≥6.5g ≥8.0g ≥11.0g ≥12.6g ≥17.0g ≥18.1g ≥20.6g ≥24.6g ≥29.0g -
GFC 4N 2.8~5.6g 4.0~8.0g 5.0~9.9g 6.5~13.1g 7.7~15.5g 9.7~19.4g 11.1~22.3g - - - -
GFD 4N 3.3~6.1g 4.8~8.8g 5.9~10.8g 7.8~14.3g 9.2~16.9g 11.5~21.2g 13.2~24.4g - - - -
GHA-2 4N - - 4.0~8.0g 7.0~11.0g 9.0~13.0g 11.0~16.0g 13.0~18.0g 15.0~21.0g 19.0~25.0g 21.0~30.0g -
GLD-H 4N ≥2.5g ≥4.0g ≥6.0g ≥10.0g ≥16.0g ≥18.0g ≥20.0g ≥23.0g ≥27.0g ≥35.0g ≥45.0g
GLD 4N 1.7~3.7g 4.9~7.4g 6.0~9.0g 8.0~12.0g 10.0~14.0g 12.0~17.0g 14.0~20.0g 15.0~23.0g 19.0~27.0g 22.0~35.0g 32.0~45.0g
GLF 4N 3.1~5.9g 4.5~8.5g 5.6~10.5g 7.4~13.9g 8.7~16.4g 10.9~20.6g 12.5~23.7g - - - -
GMB-2 4N - - 5.0~9.0g 7.5~11.5g 9.0~14.0g 11.0~16.0g 13.0~19.0g 15.0~22.0g 20.0~26.0g 23.0~33.0g -
GMG 4N 3.6~6.4g 5.1~9.1g 6.3~11.3g 8.4~14.9g 9.9~17.6g 12.4~22.1g 14.3~25.4g - - - -
GMH 4N 3.7~5.7g 5.4~8.1g 6.7~10.1g 8.8~13.3g 10.4~15.7g 13.0~19.7g 15.0~22.6g - - - -
GMH-2 4N 3.7~6.5g 5.4~9.4g 6.7~11.6g 8.8~15.3g 10.4~18.1g 13.0~22.7g 15.0~26.1g - - - -
GPG 2N 3.7~5.7g 5.4~8.1g 6.7~10.1g 8.8~13.3g 10.4~15.7g 13.0~19.7g 15.0~22.6g - - - -
GPG-2 2N 3.5~6.3g 5.0~9.0g 6.2~11.1g 8.9~16.0g 9.7~17.4g 12.1~21.8g 13.9~25.1g 15.0~23.0g 19.0~27.0g - -
GPG-3 2N 3.3~6.1g 4.8~8.8g 5.9~10.8g 7.8~14.3g 9.2~16.9g 11.5~21.2g 13.2~24.4g - - - -
GPH 2N 3.3~6.1g 4.8~8.8g 5.9~10.8g 7.8~14.3g 9.2~16.9g 11.5~21.2g 13.2~24.4g 15.1~27.7g 18.0~33.2g 21.2~39.1g -
GSA 4N 2.5~5.3g 3.6~7.6g 4.5~9.4g 5.9~12.5g 7.0~14.7g 8.7~18.5g 10.0~21.2g 11.4~24.0g - 16.1~34.0g 27.6~58.3g
GSB 4N 2.9~5.7g 4.2~8.2g 5.2~10.1g 6.9~13.5g 8.1~15.8g 10.2~19.9g 11.6~22.7g - - - -
M3 4N - 4.6~7.1g 5.7~8.8g 7.0~11.5g 8.09~13.8g 12.0~17.0g 12.9~19.8g 14.7~22.6g 17.5~27.0g 20.7~31.8g 35.8~55.1g
Y 4N - - 3.5~6.6g 6.4~8.1g 6.5~11.4g 8.5~14.7g 10.0~17.1g 11.4~19.5g 14.0~23.6g 17.6~28.9g -
Note 1: Actual elongation tends to be the middle of each range.
Example: The EL of Ø25μm GSA is shown as 1.0~7.0% in above table. However average Ø25μm GSA EL tests around 4%

RLC Parametric Data
Material
Alloy
Ø Mil Ø um R
milli-ohm/mm
0 Hz (DC)
R
milli-ohm/mm
100 MHz
Ls
nH/mm
100~400 MHz
Cs
pF/mm
100~400 MHz
Gold (4N Au)
Gold (2N Au)
PCC (4N Cu)
0.6mil 15um 163.62
191.44
115.70
237.01
277.31
177.42
1.184 0.073
Gold (4N Au)
Gold (2N Au)
PCC (4N Cu)
0.7mil 18um 119.98
140.38
84.83
182.77
213.85
137.64
1.140 0.077
Gold (4N Au)
Gold (2N Au)
PCC (4N Cu)
0.8mil 20um 91.74
107.24
64.76
148.55
173.65
111.01
1.114 0.081
Gold (4N Au)
Gold (2N Au)
PCC (4N Cu)
0.9mil 23um 72.24
84.45
51.07
122.39
143.07
92.37
1.074 0.085
Gold (4N Au)
Gold (2N Au)
PCC (4N Cu)
1.0mil 25um 58.40
68.27
41.25
103.47
120.95
79.02
1.043 0.092
Gold (4N Au)
Gold (2N Au)
PCC (4N Cu)
1.1mil 28um 49.08
56.21
33.99
88.68
103.66
68.40
1.012 0.098
Gold (4N Au)
Gold (2N Au)
PCC (4N Cu)
1.2mil 30um 40.54
47.40
28.66
78.62
91.90
60.52
1.010 0.104
RLC Electrical Parametric Data PDF


Electrical Resistance Ω Ohms per 10mm Length   •   Resistance Calculator
Symbol Material Ø15μm
0.6 mil
Ø18μm
0.7 mil
Ø20μm
0.8 mil
Ø25μm
1.0 mil
Ø30μm
1.2 mil
Ø32μm
1.25 mil
Ø33μm
1.3 mil
Ø35μm
1.4 mil
Ø38μm
1.5 mil
Ø50μm
2.0 mil
Resistivity
μΩ•cm
Au 4N Gold 1.30 0.49 0.73 0.47 0.33 0.29 0.27 0.24 0.20 0.12 2.3
Au 2N Gold 1.75 1.22 0.99 0.63 0.44 0.39 0.36 0.32 0.27 0.16 3.1
Cu CLR1-A 1.08 0.75 0.61 0.39 0.27 0.24 0.22 0.20 0.17 0.10 1.9
Cu CFB-1 1.08 0.75 0.61 0.39 0.27 0.24 0.22 0.20 0.17 0.10 1.9
Cu CA-1 1.24 0.86 0.70 0.45 0.31 0.27 0.26 0.23 0.19 0.11 2.2
Ag SEA 2.66 1.85 1.50 0.96 0.67 0.58 0.55 0.49 0.41 0.24 4.7
Ag SEB 1.87 1.30 1.05 0.67 0.47 0.41 0.39 0.34 0.29 0.17 3.3
Ag SEC 1.47 1.02 0.83 0.53 0.37 0.32 0.30 0.27 0.23 0.13 2.6
Al Al-1%Si
TANW
1.75 1.22 0.99 0.56 0.44 0.39 0.36 0.32 0.27 0.16 3.1

Power Al Wire - Electrical Resistance Ω Ohms per 10mm Length
Symbol Material Ø100μm
4mil
Ø125μm
5mil
Ø150μm
6mil
Ø175μm
7mil
Ø200μm
8mil
Ø250μm
10mil
Ø300μm
12mil
Ø350μm
14mil
Ø380μm
15mil
Ø400μm
16mil
Ø450μm
18mil
Ø500μm
20mil
Resistivity
μΩ•cm
Al TANW 0.0344 0.0220 0.0153 0.0112 0.0086 0.0055 0.0038 0.0028 0.0024 0.0021 0.0017 0.0014 2.7


Round Wire Gold Weight (Calculated using Density 19.32)
Symbol Material Length Ø15μm
0.6 mil
Ø18μm
0.7 mil
Ø20μm
0.8 mil
Ø25μm
1.0 mil
Ø30μm
1.2 mil
Ø32μm
1.25 mil
Ø33μm
1.3 mil
Ø35μm
1.4 mil
Ø38μm
1.5 mil
Ø50μm
2.0 mil
Au 4N Gold 1m 3.431mg 4.916mg 6.070mg 9.484mg 13.656mg 15.538mg 16.524mg 18.588mg 21.911mg 37.935mg
Au 4N Gold 100m 0.343g 0.492g 0.607g 0.948g 1.366g 1.554g 1.652g 1.859g 2.191g 3.793g
Au 4N Gold 300m 1.029g 1.475g 1.821g 2.845g 4.097g 4.661g 4.957g 5.576g 6.573g 11.380g
Au 4N Gold 500m 1.716g 2.458g 3.035g 4.742g 6.828g 7.769g 8.262g 9.294g 10.956g 18.967g
Au 4N Gold 1000m 3.431g 4.916g 6.070g 9.484g 13.656g 15.538g 16.524g 18.588g 21.911g 37.935g
Gold Weight Calculator. Cross Section=Circle, Material=Gold, Quantity=1. Enter "D" (mm or inch) and "L" (m or feet). Then push "Calculate" button to calculate net weight.


Ribbon Gold Weight 0.5mil thick (Calculated using Density 19.32)
Symbol Material Length 25μm
12.7μm
38μm
12.7μm
50μm
12.7μm
75μm
12.7μm
100μm
12.7μm
125μm
12.7μm
150μm
12.7μm
200μm
12.7μm
Au 4N Gold 1m 6.0mg 9.2mg 12.1mg 18.1mg 24.2mg 30.2mg 36.2mg 48.3mg
Au 4N Gold 10m 0.060g 0.092g 0.121g 0.181g 0.242g 0.302g 0.362g 0.483g
Au 4N Gold 50m 0.300g 0.460g 0.605g 0.905g 1.210g 1.510g 1.810g 2.415g
Gold Weight Calculator. Cross Section=Rectangle, Material=Gold, Quantity=1. Enter "T" and "W" (mm or inch) and "L" (m or feet). Then push "Calculate" button to calculate net weight.


Ribbon Gold Weight 1.0mil thick (Calculated using Density 19.32)
Symbol Material Length 50μm
25μm
75μm
25μm
100μm
25μm
125μm
25μm
150μm
25μm
200μm
25μm
250μm
25μm
Au 4N Gold 1m 24.2mg 36.2mg 48.3mg 60.4mg 72.5mg 96.6mg 120.8mg
Au 4N Gold 10m 0.242g 0.362g 0.483g 0.604g 0.725g 0.966g 1.208g
Au 4N Gold 50m 1.210g 1.810g 2.415g 3.020g 3.625g 4.830g 6.040g
Gold Weight Calculator. Cross Section=Rectangle, Material=Gold, Quantity=1. Enter "T" and "W" (mm or inch) and "L" (m or feet). Then push "Calculate" button to calculate net weight.


Physical Properties (General)
Item Unit Gold Copper Aluminum Silver Palladium Platinum
Atomic Symbol   Au Cu Al Ag Pd Pt
Atomic Number   79 29 13 47 46 78
Atomic Weight   196.96655 63.546 26.981538 107.8682 106.42 195.078
Melting Point K 1336 1356 933 1234 1825 2042
Density (20°) g • cm-3 19.32 8.92 2.70 10.50 12.02 21.45
Resistivity (20°) μΩ • cm 2.300 1.694 2.700 1.630 10.80 10.58
Thermal Conductivity (0~100°) Wm-1 • K-1 315.5 397 238 425 75.2 73.4
Specific Heat (0~100°) JKg-1 • K-1 130 386 917 234 247 134.4
CTE (0~100°) PPM/°C 14.1 17.0 23.5 19.1 11.0 9.0
Young's Modulus G•Pa 88.3 136 69 100.5 121 169.9
Shear Modulus G•Pa 29.6 - 26.0 31.3 - -


Physical Properties By Wire Type
Item Unit Gold
4N-Au
GFC Type
Silver
Alloy
SEC Type
Bare Copper
4N Cu
CFB-1 Type
Coated Copper
4N PCC
CLR-1AT
CHR Type
Test Method
Hardness Free Air Ball
Hardness of Wire
Hv 30~50Hv
65~85Hv
45~65Hv
65~85Hv
55~75Hv
60~80Hv
60~80Hv
70~90Hv
Vickers Tester
Density
(20°C)
g / cm3 19.32 10.54 8.92 8.97 ASTM
Thermal Conductivity
(0~100°)
W/m per K 315.5 281.5 385 385 Theoretical Value
Linear CTE
(0~100°)
PPM/°K 14.1 19.0 17.0 17.0 Metals Data Book
Elastic Modulus G•Pa 65~85 50~70 50~90 60~85 Tensile Tester
Resistivity
(20°C)
μΩ • cm 2.3 2.6 1.9 19 Kelvin Method
4-terminal
Melting Point °C 1063°C 980°C 1084°C 1084°C Theoretical Value


FUSING CURRENT By Wire Type
Alloy Wire Type
Type
Wire Diameter
Ø um
2.0mm 4.0mm 6.0mm 10mm 20mm
Gold
Au
4N
GSA, M3, GLD, GFD, GLF
GMH-2 , C, Y, FA
Ø18 um 0.70 A 0.35 A 0.24 A - -
Ø20 um 0.87 A 0.43 A 0.29 A - -
Ø25 um 1.36 A 0.68 A 0.45 A - -
2N
GBC, GPH, GPG-2
Ø18 um 0.62 A 0.31 A 0.21 A - -
Ø20 um 0.77 A 0.38 A 0.26 A - -
Ø25 um 1.20 A 0.60 A 0.40 A - -
Copper
Cu
CLR1-AT, CFB-1 Ø18 um 0.81 A 0.41 A 0.27 A - -
Ø20 um 1.00 A 0.50 A 0.24 A - -
Ø25 um 1.57 A 0.78 A 0.52 A - -
Ø30 um 2.7 A 1.3 A 0.9 A - -
Ø32 um 3.0 A 1.5 A 1.0 A - -
Ø35 um 3.6 A 1.8 A 1.2 A - -
Ø50 um 7.4 A 3.7 A 2.5 A - -
Alloy
CA-1
Ø18 um 0.76 A 0.38 A 0.25 A - -
Ø20 um 0.94 A 0.47 A 0.31 A - -
Ø25 um 1.46 A 0.73 A 0.49 A - -
Ø30 um 2.3 A 1.2 A 0.8 A - -
Ø32 um 2.6 A 1.3 A 0.9 A - -
Ø35 um 3.1 A 1.6 A 1.1 A - -
Ø50 um 6.4 A 3.2 A 2.2 A - -
Alloy
CP-1
Ø100 um - - - 4 A -
Ø300 um - - - 22 A -
Ø350 um - - - 29 A -
Ø380 um - - - 34 A -
Ø400 um - - - 37 A -
Ø450 um - - - 45 A -
Ø500 um - - - 55 A -
Silver
Ag
SEA Ø20 um 0.48 A 0.24 A 0.16 A - -
Ø25 um 0.75 A 0.37 A 0.25 A - -
SEB Ø20 um 0.67 A 0.34 A 0.22 A - -
Ø25 um 1.05 A 0.53 A 0.35 A - -
SEC Ø20 um 0.84 A 0.42 A 0.28 A - -
Ø25 um 1.32 A 0.66 A 0.44 A - -
Aluminum
Al-Si1%
TABN Ø25 um 0.98 A 0.49 A 0.33 A - -
Gold
Au Ribbon
4N
AuR
25 x 12.7 um - - - 0.18 A -
38 x 12.7 um - - - 0.27 A -
50 x 12.7 um - - - 0.36 A -
75 x 12.7 um - - - 0.54 A -
100 x 12.7 um - - - 0.72 A -
125 x 12.7 um - - - 0.90 A -
150 x 12.7 um - - - 1.08 A -
4N
AuR
75 x 25 um - - - 1.08 A -
100 x 25 um - - - 1.44 A -
125 x 25 um - - - 1.80 A -
150 x 25 um - - - 2.16 A -
200 x 25 um - - - 2.88 A -
250 x 25 um - - - 3.59 A -
Aluminum
Al Ribbon
4N
TABR
750 x 100 um - - 24.0 A 16.4 A 10.6 A
1000 x 100 um - - 32.3 A 21.8 A 14.2 A
1500 x 100 um - - 48.5 A 32.7 A 21.2 A
1500 x 200 um - - 97.0 A 65.4 A 42.5 A
2000 x 200 um - - 129.4 A 87.3 A 56.7 A
Aluminum
Power Wire
4N
TANW
Ø100 um - - - - 2.9 A
Ø200 um - - - - 7.0 A
Ø300 um - - 22.8 A 16.0 A 12.9 A
Ø400 um - - 40.6 A 25.8 A 19.7 A
Ø500 um - - 63.5 A 40.4 A 28.9 A
Alloy Wire Type
Type
Wire Diameter
Ø um
2.0mm 4.0mm 6.0mm 10mm 20mm
IMPORTANT: Fusing Current data is provided only for reference without guarantee of accuracy.
Data is subject to change based on environmental factors such as molding compound and substrate material.


HS Code - Harmonized System Tariff
Item HS Code Wire Type
1a 7108.13.7000 Gold (Round)
1b 7108.13.5500 Gold (Flat Ribbon)
2a 7605.2900 Aluminum Al-1%Si
2a 7605.19.0000 Aluminum Ribbon TABR
3a 7104.19.5000 Copper
3b 7108.29.1000 PCC Copper
4 7106.92.5000 Silver
5 7110.19.0000 Pt-Ir


Au Gold Wire Cross Reference
Heraeus
Series
Tanaka
Type
Gold
Purity
Application
Notes
AR-49 AuR 4N Flat Ribbon
AW-14 GSA 4N Smart Card
AW-23 Y 4N Soft Touch
AW-29 C 4N Legacy
AW-66 GMH-2 4N High Strength
AW-99 GMH-2 4N High Strength
FP-2 GPG-2 2N High Reliability
HA3 GPG-2 2N High Reliability
HA5 GMH-2 4N High Strength
HA6 GFD 4N Fine Pitch
HD5 M3 , GLF 4N Low Loop
RelMax GPG-2 2N High Reliability
Cross-Reference is provided for information purposes only. Customers should perform their own qualification with samples.
No warranty for accuracy or performance is implied or expressed.

Wire Part Number System
    GSA       -       25         A         100
Type   Ø Diameter  µm Spool Type Length Meters Options
Gold 4N (Au99.99%)
GSA = (300xxx) Stable Stitch
GBE = (301xxx) Bumping Wire
GMH-2 = (302xxx) High Strength
M3 = (303xxx) Standard Wire
GFD = (306xxx) Fine Pitch
GLF = (307xxx) Low Loop
GLD-H = (309xxx) Wedge to Wedge
AuR = (316xxx/326xxx) Au Ribbon
AuR3 = (353xxx) Au Ribbon Be Doping
AuS = Au Ribbon


Gold 2N (Au99%) Alloy
GPG-2 = (304xxx) High Reliability
GPG = (335xxx) High Reliability
GBC = (305xxx) Bumping Wire
GPH = (308xxx) High Reliability


Gold (Other)
FA = (330xxx) Soft Touch
Y = (331xxx) Soft Touch
GMG = (332xxx) High Strength
GMH = (333xxx) High Strength
GFC = (334xxx) Fine Pitch
GPG = (335xxx) 2N Au Alloy
GSB = (336xxx) Stable Stitch
GMB-2 = (337xxx) Smart Card
GHA-2 = (338xxx) High Loop
GL-2 = (339xxx) High Strength
C = (340xxx) Legacy
GPG-3 = (341xxx) Hi Rel
GLD = (349xxx) Wedge to Wedge


Aluminum Al-Si1%
TABN = Nickel Doping
TABW = Without Nickel


Aluminum Power
TANW = Al Power Semiconductors
TANW-MID = Al Power Tools
TANW-HARD = Al Power Batteries
TABR


Silver Ag Alloy
SEA = Silver
SEB = Silver
SEC = Silver


Palladium Pd Coated Copper
CLR-1AT = 4N Cu/Pd/Au - Original Chemistry
CLR-1AT-PLUS = 4N Cu/Pd/Au - Enhanced Chemistry
CLR-2AT = 4N Cu/Pd/Au - Enhanced Chemistry


Bare Copper
CA-1 = 2N Copper Alloy
CFB-1 = 4N Standard Bare Cu
CP-1 = 4N Cu High Power
CPR-1 = 4N Cu Ribbon

Obsolete Copper
TPCW = 4N High Purity
TCA1 = 4N Cu Fine Pitch
TCB1 = 4N Cu Good Stitch


Pt-Ir (Platinum-Iridium)
Pt-Ir10 = 10% Iridium
Pt-Ir20 = 20% Iridium
Pt(4N) = Pt 99.99%
  Code   Mil
12.5   0.5mil
15     0.6mil
17   0.67mil
18     0.7mil
20     0.8mil
23     0.9mil
25     1.0mil
28     1.1mil
30     1.2mil
32   1.25mil
33     1.3mil
35     1.4mil
38     1.5mil
43     1.7mil
50     2.0mil
60     2.4mil
62.5   2.5mil
65     2.5mil
70     2.7mil
75     3.0mil
80     3.2mil


TANW
Large Dia Wire

µm     Mil
100µm   4mil
125µm   5mil
150µm   6mil
175µm   7mil
200µm   8mil
250µm   10mil
300µm   12mil
350µm   14mil
380µm   15mil
400µm   16mil
450µm   18mil
500µm   20mil
600µm   24mil



Al Ribbon Wire
800x100 = 30 x 4.0mil
1000x100 = 40 x 4.0mil
1500x200 = 60 x 8.0mil
2000x200 = 80 x 8.0mil

More Ribbon Sizes


Au Ribbon Wire
38x12.7 = 1.5 x 0.5mil
50x12.7 = 2.0 x 0.5mil
75x12.7 = 3.0 x 0.5mil
100x12.7 = 4.0 x 0.5mil
125x12.7 = 5.0 x 0.5mil
150x12.7 = 6.0 x 0.5mil
- - - - - -
50x25 = 2.0 x 1.0mil
75x25 = 3.0 x 1.0mil
100x25 = 4.0 x 1.0mil
125x25 = 5.0 x 1.0mil
150x25 = 6.0 x 1.0mil
200x25 = 8.0 x 1.0mil
250x25 = 10 x 1.0mil
- - - - - -
125x50 = 5.0 x 2.0mil

More Ribbon Sizes
Aluminum Spool
A = 2"x1"
AL-2W Spool

B = 2"x2"
AL-4 Spool

H = 1/2" x 3/4"
1/2-Inch Spool
AL-1/2 Spool



Aluminum Spool
Conductive
Nickel Core Grounded

C = 2"x1"
AL-2 WNI Spool

N = 2"x2"
AL-4 WNi Spool
Cu Wire


Polycarbonate Spool
P = 3.5"x1.25"
No.88
TABR=Al Ribbon
CP-1 Copper

K = 3.5"x1.25"
No.88K
TANW=Power Aluminum

R = 4.7"x1.50"
No.120
TABR=Al Ribbon
CP-1=Copper

T = 4.7"x1.50"
No.120K
TANW=Power Aluminum

Meters   Feet
25       75ft
50       150ft
100     300ft
200      600ft
300    1000ft
400    1300ft
500    1500ft
1000    3000ft
2500    8000ft
5000    16000ft
Meters controlling dimension

Go to: 1/2" Spools
Blank = Standard
Green=Start
Red=End.

A = Rev A
B = Rev B
etc


Wire Order Number

    3         0         2         25         1
Alloy Shape Type Ø Diameter Length
Code • Description
3 = Gold (Au)
4 = Aluminum (Al)
5 = Silver (Ag)
7 = Copper (Cu)

Specialty Wire
2 = Platinum
Code   Description
0 = Round Wire
3 = Round Wire
4 = Round Wire

1 = Flat Ribbon 2" Spool
2 = Flat Ribbon 1/2" Spool
5 = Flat Ribbon 2" Spool
7 = Flat Ribbon No.88 Spool
Round Gold Wire (Au)
0 = GSA
1 = GBE
2 = GMH-2
3 = M3
4 = GPG-2
5 = GBC
6 = GFD
7 = GLF
8 = GPH
9 = GLD-H


Round Gold Wire (Au) More
30 = FA
31 = Y
32 = GMG
33 = GMH
34 = GFC
35 = GPG
36 = GSB
37 = GMB-2
38 = GHA-2
39 = GL-2
40 = C
41 = GPG-3
49 = GLD


Flat Gold Wire (Au)
6 = AuR
53 = AuR3 Be Doping


Aluminum Wire (Al)
1 = TALF (Discontinued)
2 = TABR
3 = TABN
4 = TABW
5 = TANW
6 = TANW-MID
7 = TANW-HARD


Silver Wire (Ag)
1 = SEA
2 = SEB
3 = SEC


Copper Wire (Cu)
0 = CLR-1AT (4N Pd Coated Cu)
1 = CA-1 (2N Bare Cu Alloy)
2 = CFB-1 (4N Bare Cu)
3 = CPR-1 (4N Ribbon)
4 = CHR-2BT (4N Pd Coated Cu)
5 = CHR-5BT (3N Pd Coated Cu)
6 = CHR-6BT (2N Pd Coated Cu)
7 = CP-1 (4N Bare Power Cu)
8 = CLR-2AT (4N Pd Coated Cu)
9 = CLR-1AT-PLUS (4N Pd Coated Cu)



Platinum-Iridium (Pt-Ir)
201 = Pt-Ir10
202 = Pt-Ir20
204 = Pt(4N)



µm     Mil
12     0.5mil
15     0.6mil
17   0.67mil
18     0.7mil
20     0.8mil
23     0.9mil
25     1.0mil
28     1.1mil
30     1.2mil
32   1.25mil
33     1.3mil
38     1.5mil
43     1.7mil
50     2.0mil
60     2.4mil
63     2.5mil
65     2.5mil
70     2.7mil
75     3.0mil
80     3.2mil


TANW , CP-1 and Y
Large Dia Wire

Code     µm     Mil
00   100µm   4mil
01   125µm   5mil
02   150µm   6mil
03   175µm   7mil
04   200µm   8mil
05   250µm   10mil
06   300µm   12mil
07   350µm   14mil
08   380µm   15mil
09   400µm   16mil
10   450µm   18mil
11   500µm   20mil
12   600µm   24mil


Al Ribbon Wire
48 = 0.8 x 0.1mm
49 = 1.0 x 0.1mm
85 = 1.5 x 0.2mm
86 = 2.0 x 0.2mm

Au Ribbon Wire
51 = 25 x 12.7um
38 = 38 x 12.7um
50 = 50 x 12.7um
52 = 75 x 12.7um
53 = 100 x 12.7um
54 = 125 x 12.7um
55 = 150 x 12.7um
- - - -
10 = 50 x 25um
11 = 75 x 25um
12 = 100 x 25um
13 = 125 x 25um
14 = 150 x 25um
15 = 200 x 25um
16 = 250 x 25um
- - - -
22 = 125 x 50um

More Ribbon Sizes
Code Meters Feet
9 = 25m    (75ft)
0 = 50m  (150ft)

1 = 100m (300ft)
2 = 200m (600ft)
3 = 300m (1000ft)
4 = 400m (1300ft)
5 = 500m (1500ft)
6 = 1000m (3000ft)
7 = 2500m (8000ft)
8 = 5000m (16000ft)

Meters controlling dimension

Go to: 1/2" Spools


Flat Ribbon Wire Size Chart
AuR-Gold Ribbon   •   TABR-Aluminum Ribbon   •   CPR-1 Cu Ribbon
    6um Thick         12.7um Thick         25um Thick         50um Thick         75um Thick
0.25mil
0.00025-inch
0.5mil
0.0005-inch
1.0mil
0.001-inch
2.0mil
0.002-inch
3.0mil
0.003-inch
Code • Width
00 = 25um (1.0mil)
01 = 38um (1.5mil)
02 = 50um (2.0mil)
03 = 75um (3.0mil)
04 = 100um (4.0mil)
05 = 125um (5.0mil)
Code • Width
51 = 25um (2.0mil)
38 = 38um (1.5mil)
50 = 50um (2.0mil)
52 = 75um (3.0mil)
53 = 100um (4.0mil)
54 = 125um (5.0mil)
55 = 150um (6.0mil)
56 = 200um (8.0mil)
57 = 250um (10.0mil)
58 = 300um (12.0mil)
Code • Width
10 = 50um (2.0mil)
11 = 75um (3.0mil)
12 = 100um (4.0mil)
13 = 125um (5.0mil)
14 = 150um (6.0mil)
15 = 200um (8.0mil)
16 = 250um (10.0mil)
17 = 300um (12.0mil)
18 = 380um (15.0mil)
19 = 500um (20.0mil)
Code • Width
21 = 100um (4.0mil)
22 = 125um (5.0mil)
23 = 150um (6.0mil)
24 = 200um (8.0mil)
25 = 250um (10mil)
26 = 300um (12mil)
27 = 380um (15mil)
28 = 500um (20mil)
29 = 635um (30mil)
Code • Width
31 = 200 (8mil)
32 = 250 (10mil)
33 = 300 (12mil)
34 = 380 (15mil)
35 = 500 (20mil)
36 = 635 (25mil)
37 = 750 (30mil)
38 =     - -     - -
39 = 1000 (40mil)
    100um Thick         125um Thick         150um Thick         200um Thick         250um Thick
4.0mil
0.004-inch
5.0mil
0.005-inch
6.0mil
0.006-inch
8.0mil
0.008-inch
10.0mil
0.010-inch
Code • Width
43 = 250um (10mil)
44 = 300um (12mil)
45 = 380um (15mil)
46 = 500um (20mil)
47 = 635um (25mil)
48 = 750um (30mil)
49 = 1000um (40mil)
42 = 1500um (60mil)
41 = 2000um (80mil)
Code • Width
71 = 250um (10mil)
72 = 300um (12mil)
73 = 380um (15mil)
74 = 500um (20mil)
75 = 635um (25mil)
76 = 750um (30mil)
77 = 1000um (40mil)
78 = 1500um (60mil)
79 = 2000um (80mil)
Code • Width
61 = 500um (20mil)
62 = 635um (25mil)
63 = 750um (30mil)
64 = 1000um (40mil)
67 = 1250um (50mil)
65 = 1500um (60mil)
66 = 2000um (80mil)
Code • Width
81 = 500um (20mil)
82 = 635um (25mil)
83 = 750um (30mil)
84 = 1000um (40mil)
87 = 1250um (50mil)
85 = 1500um (60mil)
86 = 2000um (80mil)
Code • Width
91 = 500um (20mil)
92 = 635um (25mil)
93 = 750um (30mil)
94 = 1000um (40mil)
97 = 1250um (50mil)
95 = 1500um (60mil)
96 = 2000um (80mil)

Equivalent Number Round Al Power Wires in Flat Ribbon
TABR
Type
Order
Code
Ribbon Size
Width x Thick
Ribbon Size
Width x Thick
Equivalent Number of Round Wires in Flat Ribbon
Ø100μm
4.0 mil
Ø125μm
5.0 mil
Ø150μm
6.0 mil
Ø180μm
7.0 mil
Ø200μm
8.0 mil
Ø250μm
10 mil
Ø300μm
12 mil
TABR-500x100 41246x 20mil 4mil 500μm 100μm 6.4 4.1 2.8 2.1 1.6 1.0 0.7
TABR-750x100 41248x 30mil 4mil 750μm 100μm 9.6 6.1 4.2 3.1 2.4 1.5 1.1
TABR-1000x100 41249x 40mil 4mil 1000μm 100μm 12.7 8.2 5.7 4.2 3.2 2.0 1.4
TABR-1000x150 41264x 40mil 6mil 1000μm 150μm 19.1 12.2 8.5 6.2 4.8 3.1 2.1
TABR-1000x200 41266x 40mil 8mil 1000μm 200μm 25.5 16.3 11.3 8.3 6.4 4.1 2.8
TABR-1500x100 41242x 60mil 4mil 1500μm 100μm 19.1 12.2 8.5 6.2 4.8 3.1 2.1
TABR-1500x150 41265x 60mil 6mil 1500μm 150μm 28.7 18.3 12.7 9.4 7.2 4.6 3.2
TABR-1500x200 41285x 60mil 8mil 1500μm 200μm 38.2 24.5 17.0 12.5 9.6 6.1 4.2
TABR-1500x250 41295x 60mil 10mil 1500μm 250μm 47.8 30.6 21.2 15.6 11.9 7.6 5.3
TABR-1500x300 41296x 60mil 12mil 1500μm 300μm 57.3 36.7 25.5 18.7 14.3 9.2 6.4
TABR-2000x200 41286x 80mil 8mil 2000μm 200μm 51.0 32.6 22.6 16.6 12.7 8.2 5.7
TABR-2000x250 41296x 80mil 10mil 2000μm 250μm 63.7 40.8 28.3 20.8 15.9 10.2 7.1
TABR-2000x300 41299x 80mil 12mil 2000μm 300μm 76.4 48.9 34.0 25.0 19.1 12.2 8.5
Note 1: Table shows a reduction in number of round wires by using a single flat ribbon wire.
Note 2: Flat ribbon wire provides same or better electrical performance.
Note 3: Flat ribbon wire is of particular benefit for power electronics and automotive applications, as well as PV solar photovoltaic and RF applications.
Note 4: Formula: RibbonWidth * RibbonThick = 0.785 * Number Round Wires * DIA2



AWG Size Chart (Approximate Reference Only)
AWG
Gauge
Mil Inch Micron
μm
Millimeter
mm
AWG 24 20 mil 0.020" 500um 0.50mm
AWG 25 18 mil 0.018" 450um 0.45mm
AWG 26 16 mil 0.016" 400um 0.40mm
AWG 27 14 mil 0.014" 360um 0.36mm
AWG 28 12.5 mil 0.0125" 320um 0.32mm
AWG 30 10 mil 0.010" 250um 0.25mm
AWG 32 8 mil 0.008" 200um 0.20mm
AWG 34 6 mil 0.006" 150um 0.15mm
AWG 36 5 mil 0.005" 125um 0.125mm
AWG 38 4 mil 0.004" 100um 0.10mm
AWG 40 3 mil 0.003" 80um 0.08mm
AWG 41 2.8 mil 0.0028" 70um 0.07mm
AWG 42 2.5 mil 0.0025" 60um 0.06mm
AWG 44 2.0 mil 0.002" 50um 0.05mm
AWG 46 1.6 mil 0.0016" 40um 0.04mm
AWG 47 1.4 mil 0.0014" 35um 0.035mm
AWG 48 1.25 mil 0.00125" 32um 0.032mm
AWG 49 1.1 mil 0.0011" 28um 0.028mm
AWG 50 1.0 mil 0.001" 25um 0.025mm
Note 1: Sizes listed in table are rounded (up or down) for simplicity and are not guaranteed for accuracy.
Note 2: Refer to ASTM standard B258 for accurate dimensions.
Note 3: AWG is the American Wire Gauge developed in 1857, predominantly for use in North America for electrically conducting wire.
Note 3: Tanaka wire is made to the metric standard.







Download Solidworks® e-Drawing viewer to enjoy 360° rotatable Types:  Download



TopLine Corporation
95 Highway 22 W
Milledgeville, GA 31061, USA
Toll Free USA/Canada (800) 776-9888
International: 1-478-451-5000  •  Fax: 1-478-451-3000
Email: sales@topline.tv

©2020 TopLine. All Rights Reserved.

Home
