M-QFN Open cavity (air cavity) packages for quick-to-market applications. Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave. Use for R&D, laboratory projects and pre-production where low volume, low cost is required. Features to suit your specific packaging needs: See our Lids. See All Open Cavity Packages Available

M-QFN Open (Air) Cavity QFN
N Leads	P Pitch	D/E Body	D1/E2 Die Pad	Plating Spec	Qty M-QFN 2" Tray	Part Number	PDF Outline Drawing	Rotatable 360° Solidworks Model	Status
8	0.65mm	3mm	1.4mm	G5	100	M-QFN8W.65-G5	460850	Model	Tooled

Install Solidworks e-Drawings software Version 10. Required to view rotatable models: PC Version • Mac Version


Photo Examples M-QFN8W.65-G5 Open Cavity
Click Photos to Enlarge

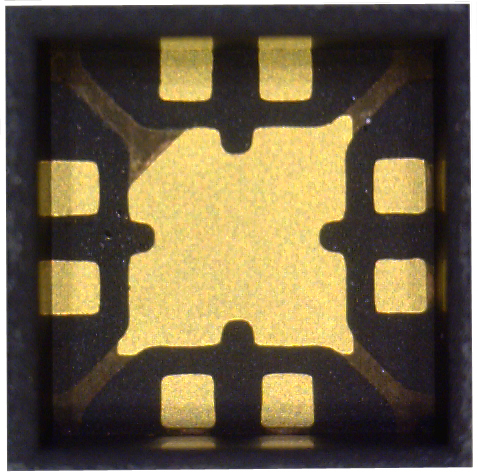

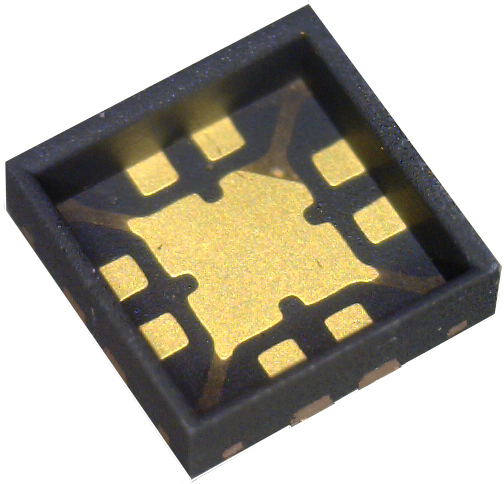

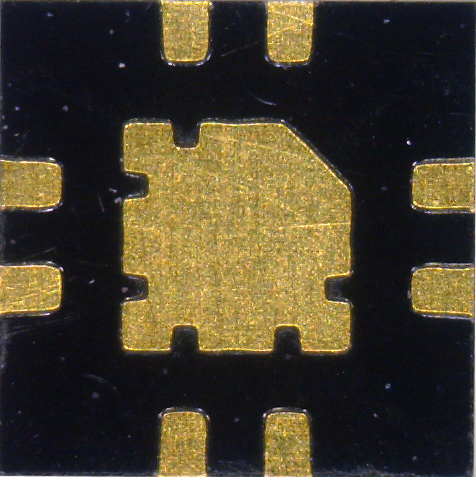

Perpective View 8L 3x3mm Pitch 0.65mm NiPdAu G6	Top Cavity 8L 3x3mm Pitch 0.65mm NiPdAu G5	Bottom View 8L 3x3mm Pitch 0.65mm NiPdAu G5
Wire Bond Cavity View With Dummy Die 8L 3x3mm Pitch 0.65mm NiPdAu G5	Wire Bond With Dummy Die 8L 3x3mm Pitch 0.65mm NiPdAu G5


Construction: Copper Lead Frame (C-194 F/H) Plating: NiPdAu G6 - Ni 0.50 ~ 2.00µm • Pd 0.02 ~ 0.15µm • Au 0.003 ~ 0.015µm G5 - Ni 1.27 ~ 4.57µm • Pd 0.15 ~ 0.51µm • Au 0.10 ~ 0.20µm

Mirror Semiconductor
17595 Harvard Ave, Suite 509
Irvine, CA 92614, USA
Tel: 1-866-404-8800
email to Info@MirrorSemi.com

Top of Page

Back to Products Home

M-QFN have matching footprints to OmPP and OCPP and Open-Pak OCP DFN3X3-08-OP-01-B, DFN3X3-10-OP-01-B, MLP3X3-12-OP-01-B, MLP3X3-16-OP-01-B, MLP4X4-12-OP-01-B, MLP4X4-16-OP-01-B, MLP4X4-20-OP-01-B, MLP4X4-24-OP-01-B, MLP5X5-16-OP-01-B, MLP5X5-16-OP-02-B, MLP5X5-20-OP-01-B, MLP5X5-24-OP-01-B, MLP5X5-28-OP-01-B, MLP5X5-32-OP-01-B, MLP6X6-24-OP-01-B, MLP6X6-28-OP-01-B, MLP6X6-36-OP-01-B, MLP6X6-40-OP-01-B, MLP7X7-28-OP-01-B, MLP7X7-32-OP-01-B, MLP7X7-44-OP-01-B, MLP7X7-48-OP-02-B, MLP8X8-28-OP-01-B, MLP8X8-32-OP-01-B, MLP8X8-52-OP-01-B, MLP8X8-56-OP-01-B, MLP9X9-44-OP-01-B, MLP9X9-64-OP-01-B, MLP12X12-80-OP-01-B, MLP12X12-100-OP-01-B, CL-MLP3X3-15-01, CL-MLP4X4-15-01, CL-MLP5X5-15-02, CL-MLP5X5-15-01, CL-MLP5X5-15-02, CL-MLP6X6-15-01, CL-MLP7X7-15-01, CL-MLP8X8-15-01, CL-MLP9X9-15-01, CL-MLP12X12-15-01, OCP_QFN_3X3_12A , OCP_QFN_3X3_16A , OCP_QFN_4X4_12A , OCP_QFN_4X4_16A , OCP_QFN_4X4_20A , OCP_QFN_4X4_24A , OCP_QFN_5X5_16A , OCP_QFN_5X5_20A , OCP_QFN_5X5_24A , OCP_QFN_5X5_28A , OCP_QFN_5X5_32A , OCP_QFN_6X6_24A , OCP_QFN_6X6_36A , OCP_QFN_6X6_40A , OCP_QFN_7X7_28A , OCP_QFN_7X7_32A , OCP_QFN_7X7_44A , OCP_QFN_7X7_48A , OCP_QFN_8X8_28A , OCP_QFN_8X8_32A , OCP_QFN_8X8_52A , OCP_QFN_8X8_56A , OCP_QFN_9X9_64A , OCP_QFN_12X12_100A , OCP_QFN_12X12_80A ,LQFP10X10-44OP-01-B , LQFP10X10-52OP-01-B , LQFP10X10-64OP-01-B , LQFP10X10-64OP-01 , OCP_LQFP44A , OCP_LQFP64A , OCP_SOIC_150_16A , OCP_SOIC_150_8A , OCP_SOIC_300_16B , OCP_SOIC_300_20A , OCP_SOIC_300_24A , OCP_SOIC_300_28A, OPC_SOIC16A , OPC_SOIC16B , OPC_SOIC20A , OPC_SOIC24A, OPC_SOIC28A , OPC_SOIC8A , SOIC016-OP-01 , SOIC016-OP-02 , SOIC020-OP-01 , SOIC024-OP-01 , SOIC028A_OP_01, SOIC08-OP-01 , OmPP, QP-QFN16-3mm-0.5mm , QP-QFN16-4mm-0.65mm , QP-QFN20-4mm-0.5mm , QP-QFN20-5mm-0.65mm , QP-QFN24-4mm-0.5mm , QP-QFN28-4mm-0.4mm , QP-QFN28-5mm-0.5mm , QP-QFN28-6mm-0.65mm , QP-QFN32-5mm-0.5mm , QP-QFN40-6mm-0.5mm , QP-QFN48-6mm-0.4mm , QP-QFN48-7mm-0.5mm , QP-QFN56-8mm-0.5mm , QP-QFN64-9mm-0.5mm , QP-QFN72-10mm-0.5mm , QP-QFN8-3mm-0.65mm , QP-QFN88-10mm-0.4mm , QP-QFN100-12mm-0.4mm , QFN5X5-2801 , QFN5X5-3201 , QFN7X7-4401 , QFN7X7-4801 , QFN8X8-5201 , QFN8X8-5601 , QFN9X9-6401 , POQ-S-0303-12-B , POQ-S-0303-16-B , POQ-S-0303-8-C , POQ-S-0404-16-C , POQ-S-0404-20-B , POQ-S-0404-24-B , POQ-S-0505-32-B , POQ-S-0505-40-A , POQ-S-0606-40-B , POQ-S-0606-48-A POQ-S-0707-48-B , POQ-S-0808-56-B , POQ-S-0909-64-B , POQ-S-1010-72-B , POQ-S-1212-80-B ,
