M-QFN64T.5
Open Cavity QFN

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


M-QFN Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
  •


    M-QFN64T.5 Open (Air) Cavity QFN
    N
    Leads
    P
    Pitch
    D/E
    Body
    D1/E2
    Die Pad
    Plating
    Spec
    Qty
    Tray
    Part Number PDF
    Outline
    Drawing
    Status
    64 0.5mm 9mm 7.0mm G3 16
    25
    49
    M-QFN64W.5-G3
    M-QFN64M.5-G3
    M-QFN64T.5-G3
    456430
    456433
    456434
    Tooled


    Drawings • CAD Documents
    Click link to Download File

    PDF

    DXF
    Outline

    DXF
    Bond  Diagram

    DXF
    PCB  Layout

    Solidworks
    easm
    Model

    STEP 3D Model
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version



    Photo Examples M-QFN64T.5-G3 Open Cavity
    Click Photos to Enlarge

    Click to Enlarge
    Perspective View
    64L 9x9mm
    Pitch 0.5mm
    NiAu G3
    Click to Enlarge

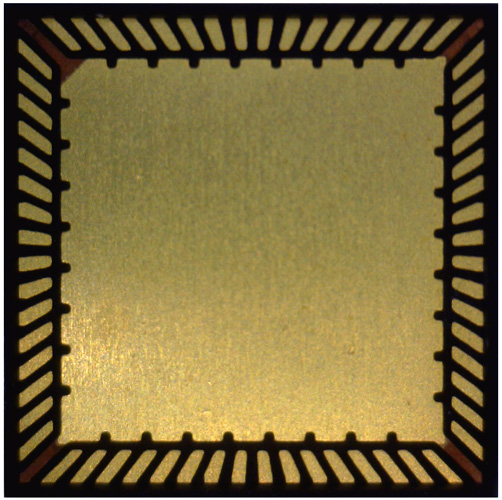

    Top Cavity
    64L 9x9mm
    Pitch 0.5mm
    NiAu G3
    Click to Enlarge

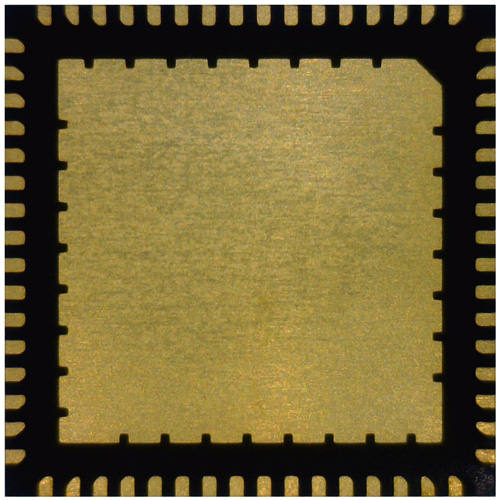

    Bottom View
    64L 9x9mm
    Pitch 0.5mm
    NiAu G3

    Construction:
  • Copper Lead Frame (C-194 F/H)
  • Plating: NiAu
  • G3 - Ni 2.50 ~ 7.6µm  • Au 1.0 ~ 2.0µm
  •

    Cavity Package Part Numbering System
    M - QFN 64 T .5 - G3
    Cavity Package   Model Leads Packaging Pitch (mm) Plating
    M = Molded Plastic
    Cu Leadframe (C-194F/H)
      QFN = Quad Row 64L
    9x9mm
    W = 2" Tray
    T = 4" Tray
    0.5mm NiAu Plating
    Ni 2.5 ~ 7.6µm
    Au 1.0 ~ 2.0µm


    Drawing Numbering System
       4       5       64       3       4
    Package Pitch Pins Plating Packaging
    4 = QFN
    Quad Sides
    5 = 0.5mm 64L
    9x9mm
    NiAu Plating
    Ni 2.5 ~ 7.6µm
    Au 1.0 ~ 2.0µm
    0 = 2" Waffle Tray (W)
    3 = Tube (M)
    4 = 4" Waffle Tray (T)

    Flat Lids   •   Flat Covers
    Part Series B-LID9W-BLACK T-LID9W-BLACK T-LID9W-WHITE G-LID9W-GLASS
    Shape Flat Flat Flat Flat
    Material Plastic BT Plastic BT Rogers RO4003C Glass Borosilicate
    Color Black Black White Clear
    D/E Size 9x9mm 9x9mm 9x9mm 9x9mm
    Thickness 0.3mm 0.2mm 0.2mm 0.7mm
    Attach Permanent Removable
    or
    Permanent
    Removable
    or
    Permanent
    Removable
    or
    Permanent
    Sealing
    Method
    LCA3000X
    B-Stage Preform
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    Top
    View
    Bottom
    View
    Rotatable
    Model
     B-LID  T-LID  T-LID  G-LID
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version


    Dome Lids   •   Cavity Covers   •   For Tall Die
    Part Series C-CAP9W-WHITE G-CAP9W-GLASS L-CAP9W-BLACK B-CAP9W-BLACK Z-CAP9W-ALUMINUM
    Shape Dome
    Cavity
    Dome
    Cavity
    Dome
    Cavity
    Dome
    Cavity
    Dome
    Cavity
    Material Ceramic
    Alumina 96
    Al2O3
    Glass
    Borosilicate
    LCP
    Liquid Crystal
    Polymer
    LCP
    Liquid Crystal
    Polymer
    Aluminum
    (Al)
    Color White Clear Black Black Aluminum
    D/E Size 9x9mm 9x9mm 9x9mm 9x9mm 9x9mm
    I.D.
    Ceiling
    Height
    0.6mm 0.6mm 0.6mm~
    2.0mm
    0.6mm~
    2.0mm
    1.2mm
    O.D.
    Outline
    Height
    1.0mm 1.1mm 1.0mm~
    2.5mm
    1.0mm~
    2.5mm
    1.6mm
    B-Stage
    Preform
    None None None Yes None
    Attach Removable
    or
    Permanent
    Removable
    or
    Permanent
    Removable
    or
    Permanent
    Permanent Removable
    or
    Permanent
    Sealing
    Method
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    LCA3000X
    B-Stage Preform
    Kapton Tape
    or Adhesive Paste
    Top
    View
    Bottom
    View
    Rotatable
    Model
      C-CAP   G-CAP   L-CAP   B-CAP   Z-CAP
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version
