M-QFN Open cavity (air cavity) packages for quick-to-market applications. Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave. Use for R&D, laboratory projects and pre-production where low volume, low cost is required. Singulated, ready for die attach and wire-bond. Cover with lid or fill with glob-top. Features to suit your specific packaging needs: CAD Drawings Center: DWG, DXF, SAT, IGES, STEP , EASM, EPRT, PDF Customer Design Questionnaire . Lid and Cap System Lids. Material Properties: CTE, Dk , Df, ε , δ Plating: Thickness (G3=NiAu, G4=NiPdAu, G5=NiPdAu, G6=NiPdAu and G7=NiPdAu) Wire Bonding Temperature: 180°C Max • Peak Reflow Temp: 260°C Max MSL-3 (Moisture Sensitivity Level) Die Attach Adhesive: Conductive or Non-Conductive. Eutetic Die Attach AuSn, AuSi Wire Bonding Photo Gallery Package Part Numbering System EAR99 • HS 8542.90.0000 • RoHS Pb-Free • JEDEC MO-220 VQFN			Check our 3D Solidworks Models

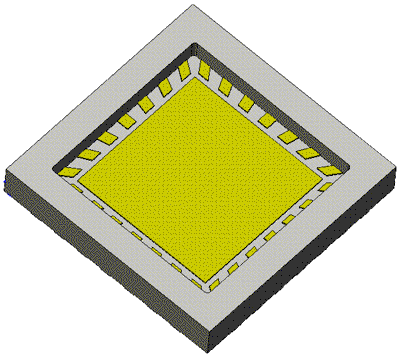

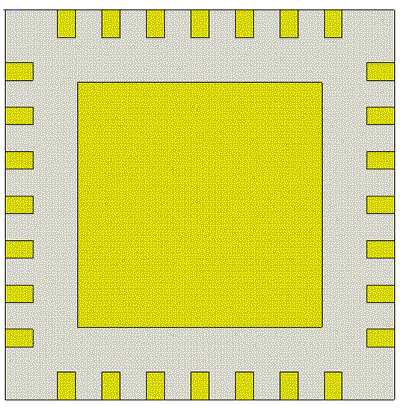

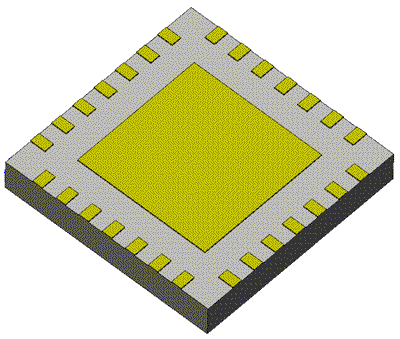

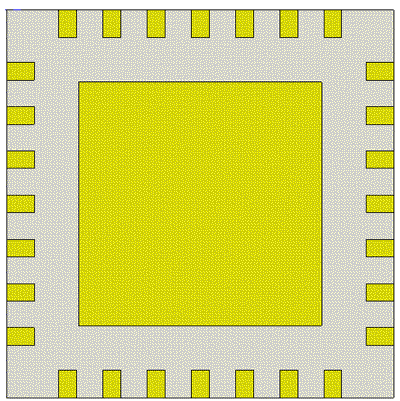

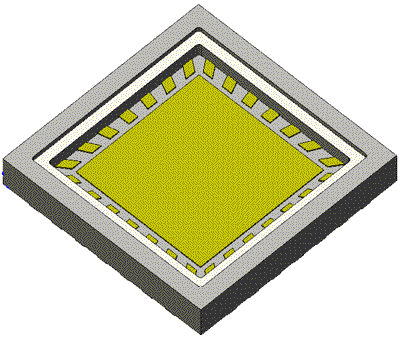

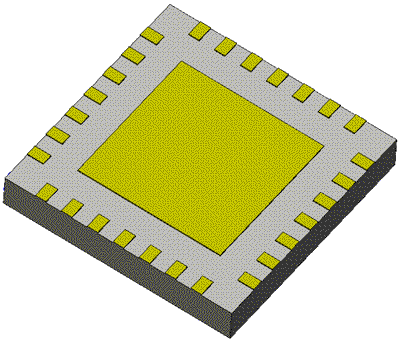

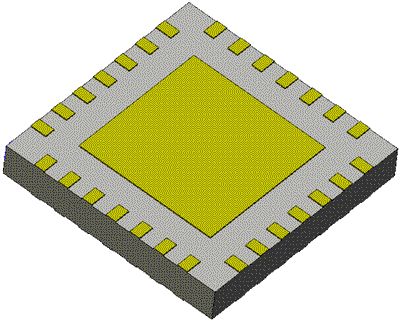

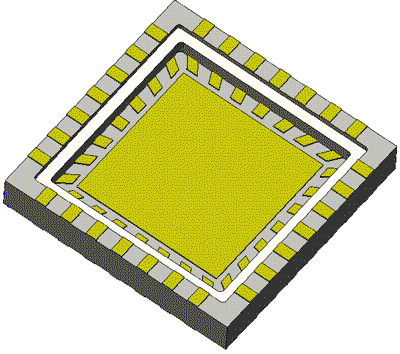

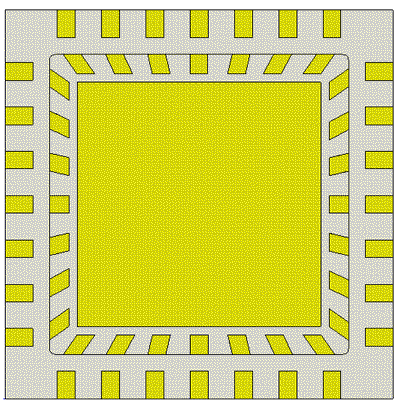

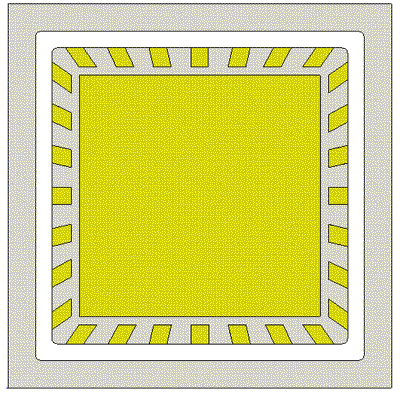

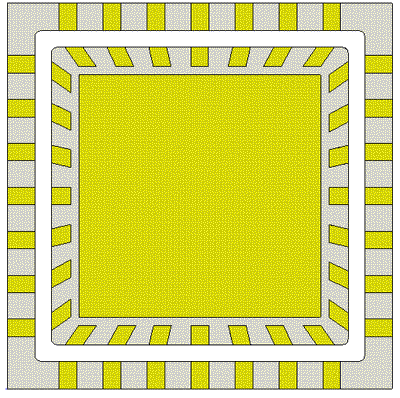

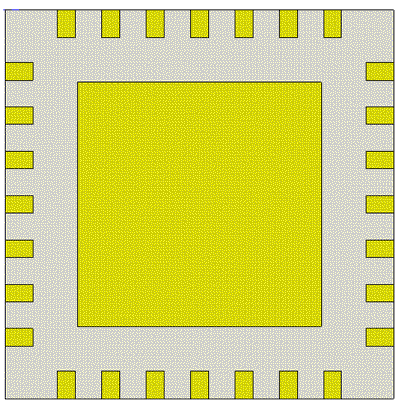

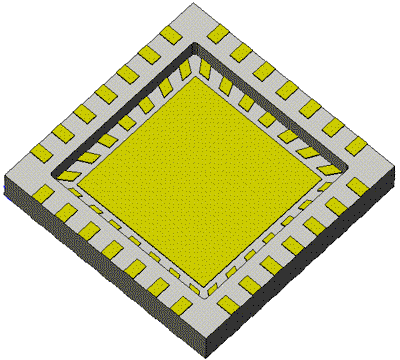

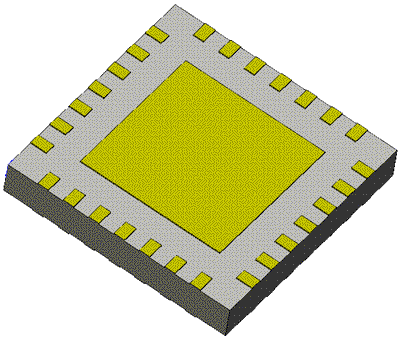

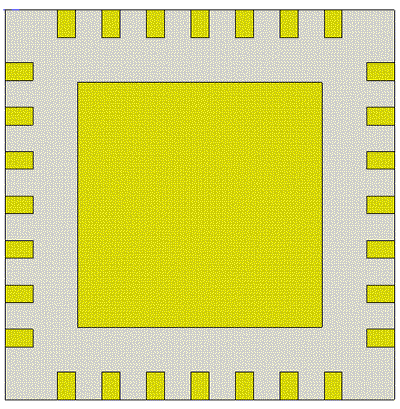

Examples of Open Cavity M-QFN

8L 3x3mm Pitch 0.65mm	12L 3x3mm Pitch 0.5mm	16L 3x3mm Pitch 0.5mm	16L 4x4mm Pitch 0.65mm	20L 4x4mm Pitch 0.5mm	24L 4x4mm Pitch 0.5mm	32L 5x5mm Pitch 0.5mm	40L 5x5mm Pitch 0.4mm
40L 6x6mm Pitch 0.5mm	48L 6x6mm Pitch 0.4mm	48L 7x7mm Pitch 0.5mm	56L 8x8mm Pitch 0.5mm	64L 9x9mm Pitch 0.5mm	72L 10x10mm Pitch 0.5mm	80L 12x12mm Pitch 0.5mm	3L • 8L • 14L 16L • 16L WIDE 20L • 24L • 28L

M-QFN Open (Air) Cavity QFN
N Leads	P Pitch	D/E Body	D1/E2 Die Pad	Plating Spec	Qty 2" Tray	Qty 4" Tray	Part Number	Outline Drawing PDF	Status
8	0.65mm	3mm	1.4mm	G3 G5	100	256	M-QFN8W.65-G3 M-QFN8W.65-G5	460830 460850	G3 Tooled G5 E.O.L.
8	0.65mm	3mm	1.36x2.2mm	G7	100	256	M-DFN8W.65-G7	560870	G7 E.O.L.
10	0.5mm	3mm	1.36x2.2mm	G7	100	256	M-DFN10W.5-G7	551070	G7 E.O.L.
12	0.5mm	3mm	1.4mm	G3 G6	100	256	M-QFN12W.5-G3 M-QFN12W.5-G6	451230 451260	G3 Tooled G6 E.O.L.
12	0.65mm	3mm	1.45mm	G3 G7	100	256	M-QFN12W.65-3MM-G3 M-QFN12W.65-3MM-G7	461330 461370	G3 Tooled G6 E.O.L.
12	0.65mm	4mm	2.4mm	G7	64	196	M-QFN12W.65-4MM-G7	461270	G7 E.O.L.
12	0.8mm	4mm	2.54mm	G7	64	196	M-QFN12W.8-G7	481270	G7 E.O.L.
16	0.5mm	3mm	1.35mm	G1	100	256	C-QFN16T.5-G1 Ceramic	451610	G1 Tooled
16	0.5mm	3mm	1.4mm	G3 G6	100	256	M-QFN16W.5-G3 M-QFN16W.5-G7	451630 451670	G3 Tooled G7 E.O.L.
16	0.65mm	4mm	2.4mm	G3 G5	64	196	M-QFN16W.65-G3 M-QFN16W.65-G5	461630 461650	G3 Tooled G5 E.O.L.
16	0.8mm	5mm	3.4mm	G3 G7	36	144	M-QFN16W.8-G3 M-QFN16W.8-G7	481630 481670	G3 Tooled G7 E.O.L.
20	0.4mm	3mm	1.6mm	G7	100	256	M-QFN20W.4-G7	442070	G7 E.O.L.
20	0.5mm	4mm	2.4mm	G3 G5	64	196	M-QFN20W.5-G3 M-QFN20W.5-G5	452030 452050	G3 Tooled G5 E.O.L.
20	0.65mm	5mm	3.54mm	G3 G7	36	144	M-QFN20W.65-G3 M-QFN20W.65-G7	462030 462070	G3 Tooled G7 E.O.L.
20	0.8mm	5mm	3.4mm	G7	36	144	M-QFN20W.8-G7	482070	G7 E.O.L.
24	0.5mm	4mm	2.4mm	G3	64	196	M-QFN24W.5-G3	452430	G3 Tooled
24	0.65mm	5mm	3.4mm	G3 G7	36	144	M-QFN24W.65-G3 M-QFN24W.65-G7	462430 462470	G3 Tooled G7 E.O.L.
28	0.4mm	4mm	2.4mm	G3 G7	64	196	M-QFN28W.4-G3 M-QFN28W.4-G7	442830 442870	G3 Tooled G7 E.O.L.
28	0.5mm	5mm	3.4mm	G3 G7	36	144	M-QFN28W.5-G3 M-QFN28W.5-G7	452830 452870	G3 Tooled G7 E.O.L.
28	0.65mm	6mm	4.3mm	G3 G7	25	121	M-QFN28W.65-G3 M-QFN28W.65-G7	462830 462870	G3 Tooled G7 E.O.L.
28	0.8mm	7mm	5.4mm	G7	25	81	M-QFN28W.8-G7	482870	G7 E.O.L.
32	0.5mm	5mm	3.4mm	G3	36	144	C-QFN32T.5-G1 Ceramic	453210	G1 Tooled
32	0.5mm	5mm	3.4mm	G3	36	144	M-QFN32W.5-G3	453230	G3 Tooled
32	0.65mm	7mm	5.4mm	G3 G7	25	81	M-QFN32W.65-G3 M-QFN32W.65-G7	463230 463270	G3 Tooled G7 E.O.L.
36	0.4mm	5mm	3.4mm	G7	36	144	M-QFN36W.4-G7	443670	G3 Tooled G7 E.O.L.
36	0.5mm	6mm	4.5mm	G3 G7	25	121	M-QFN36W.5-G3 M-QFN36W.5-G7	453630 453670	G3 Tooled G7 E.O.L.
40	0.4mm	5mm	3.4mm	G3 G5	36	144	M-QFN40W.4-G3 M-QFN40W.4-G5	444030 444050	G3 Tooled G5 E.O.L.
40	0.5mm	6mm	4.4mm	G3 G7	25	121	M-QFN40W.5-G3 M-QFN40W.5-G7	454030 454070	G3 Tooled G7 E.O.L.
44	0.5mm	7mm	5.4mm	G3 G7	25	81	M-QFN44W.5-G3 M-QFN44W.5-G7	454430 454470	G3 Tooled G7 E.O.L.
48	0.4mm	6mm	4.4mm	G3 G5	25	121	M-QFN48W.4-G3 M-QFN48W.4-G5	444830 444850	G3 Tooled G5 E.O.L.
48	0.5mm	7mm	5.4mm	G3	25	81	M-QFN48T.5-G3	454830	G3 Tooled
52	0.5mm	8mm	6.4mm	G7	16	64	M-QFN52T.5-G7	455274	G7 E.O.L.
56	0.5mm	8mm	6.0mm	G3 G7	16	64	M-QFN56T.5-G3 M-QFN56T.5-G7	455634 455674	G3 Tooled G7 E.O.L.
60	0.4mm	7mm	5.4mm	G3	25	81	M-QFN60T.4-G3	446030	G3 Tooled
64	0.5mm	9mm	7.0mm	G3	16	49	M-QFN64T.5-G3	456430	G3 Tooled
68	0.5mm	10mm	8.3mm	G7	16	49	M-QFN68W.5-G7	456874	G7 E.O.L.
72	0.5mm	10mm	8.0mm	G3 G6	9	49	M-QFN72W.5-G3 M-QFN72T.5-G6	457234 457264	G3 Tooled G6 E.O.L.
80	0.5mm	12mm	9mm	G3 G7	9	36	M-QFN80T.5-G3 M-QFN80T.5-G7	458074	G3 Tooled G7 E.O.L.
88	0.4mm	10mm	8.2mm	G3 G7	9	49	M-QFN88T.4-G3 M-QFN88T.4-G7	448830 448874	G3 Tooled G7 E.O.L.
100	0.4mm	12mm	9.3mm 10.2mm	G3 G7	9	36	M-QFN100T.4-G3 M-QFN100T.4-G7	449934 449974	G3 Tooled G7 E.O.L.
Plating: Open cavity M-QFN and H-QFN Series suffix G5 and G7 changed to G6 for new designs.

Install Solidworks e-Drawings software Version 10. Required to view rotatable models: PC Version • Mac Version

Road Map Future Packages • 2013 Design Change

M-SOIC Open (Air) Cavity SO Packages
N Leads	P Pitch	D/E Body	D1/E2 Die Pad	Plating Spec	Qty Tube	Part Number	Outline Drawing PDF	Status
8	1.27mm	3.9x4.95mm	2.5x1.9mm	G3	25	M-SO8M1.27-G3	120108	G3 Tooled
14	1.27mm	3.9x8.75mm	2.5x1.9mm	G3	25	M-SO14M1.27-G3	120114	G3 Tooled
16	1.27mm	3.9x8.75mm	2.5x1.9mm	G3	25	M-SO16M1.27-G3	120116	G3 Tooled
16	1.27mm	7.5x10.16mm	3.8x5.6mm	G3	20	M-SOL16M1.27-G3	120216	G3 Tooled
20	1.27mm	7.5x13mm	3.8x5.8mm	G3	15	M-SOL20M1.27-G3	120220	G3 Tooled
24	1.27mm	7.5x15.5mm	3.8x5.8mm	G3	14	M-SOL24M1.27-G3	120224	G3 Tooled
28	1.27mm	7.5x18mm	3.8x5.8mm	G3	12	M-SOL28M1.27-G3	120228	G3 Tooled

Install Solidworks e-Drawings software Version 10. Required to view rotatable models: PC Version • Mac Version

M-TO220 Open (Air) Cavity Power Packages
N Leads	P Pitch	D/E Body	D1/E2 Die Pad	Plating Spec	Qty Tube	Part Number	Outline Drawing PDF	Status
3	2.54mm	10x9mm	8.6x4.5mm	G3	50	M-TO220-G3	122203	G3 Tooled

Install Solidworks e-Drawings software Version 10. Required to view rotatable models: PC Version • Mac Version

Package Part Numbering System
M	-	QFN	16	W	.5	- G3
Cavity Type		Model	Leads	Packaging	Pitch (mm)	Option
Molded Cavity Package: M = Cavity Depth 0.6mm H = Cavity Depth 1.0mm Copper Leadframe (C-194F/H) Ceramic Cavity Package: C = Cavity Depth 0.6mm		QFN = Quad DFN = Dual SO = Small Outline TO = Transistor Outline	Number Pins	W = 2" Tray T = 4" Tray M = Tube	.4 .5 .65 .8 1.27	M-QFN or H-QFN: G3 = NiAu (Thick Gold) G6 = NiPdAu (Palladium/Thin Gold) Special: G4 = NiPdAu G5 = NiPdAu G7 = NiPdAu C-QFN: G1 = NiPdAu G2 = NiAu

Click Lid part numbering system.

Drawing Numbering System
4	5	16	5	0
Open Cavity Package	Pitch	Pins	Plating & Construction	Packaging
4 = QFN Quad Sides 5 = DFN Dual Sides 1 = SOIC Gull Wing	Standard: 4 = 0.4mm 5 = 0.5mm 6 = 0.65mm 8 = 0.8mm 2 = 1.27mm Special: 0 = None 1 = 1.0mm 3 = 2.54mm 7 = Special 9 = Special	08 = 8L 10 = 10L 12 = 12L 14 = 14L 16 = 16L 20 = 20L 24 = 24L 28 = 28L 32 = 32L 36 = 36L 40 = 40L 44 = 44L 48 = 48L 52 = 52L 56 = 56L 64 = 64L 68 = 68L 72 = 72L 80 = 80L 88 = 88L 99 = 100L	Ceramic Package: 1=NiPdAu (Ceramic Package) "M" or "H" Plastic Package: 3=NiAu (Thick Gold) 6=NiPdAu (Thin Gold) Special: 5=NiPdAu 7=NiPdAu	M-QFN Cavity Depth 0.6mm: 0 = 2" Waffle Tray (W) 4 = 4" Waffle Tray (T) 3 = Tube (M) H-QFN Cavity Depth 1.0mm: 2 = 2" Waffle Tray (W) 1 = 4" Waffle Tray (T)

Packaging Codes Quantity
QFN D/E Size	W 2" Waffle Tray	T 4" Waffle Tray	J JEDEC Matrix Tray
3mm	100	256	490
4mm	64	196	490
5mm	36	144	490
6mm	25	121	260
7mm	25	81	260
8mm	16	64	260
9mm	16	49	260
10mm	9	49	168
12mm	9	36	189
