Lid for Open Cavity QFN Package. Dome Lid. Dome Cap. Dome Cup. B-LID, C-LID, S-LID, T-LID, F-LID, M-CAP, Z-CAP (Aluminum), P-CAP (Teflon), R-CAP (Ceramic RO-4003C), B-CAP T-LID matches outline of CL-MLP3X3-15-01, CL-MLP4X4-15-01, CL-MLP5X5-15-02, CL-MLP5X5-15-01, CL-MLP5X5-15-02, CL-MLP6X6-15-01, CL-MLP7X7-15-01, CL-MLP8X8-15-01, CL-MLP9X9-15-01, CL-MLP12X12-15-01, OCP_QFN_3X3_12A B-LID3W-BLACK , B-LID4W-BLACK , B-LID5W-BLACK , B-LID6W-BLACK , B-LID7W-BLACK , B-LID8W-BLACK , B-LID9W-BLACK , B-LID10W-BLACK , B-LID12W-BLACK * * * * C-LID3W-BLACK , C-LID4W-BLACK , C-LID5W-BLACK , C-LID6W-BLACK , C-LID7W-BLACK , C-LID8W-BLACK , C-LID9W-BLACK , C-LID10W-BLACK , C-LID12W-BLACK * * S-LID3W-BLACK , S-LID4W-BLACK , S-LID5W-BLACK , S-LID6W-BLACK , S-LID7W-BLACK , S-LID8W-BLACK , S-LID9W-BLACK , S-LID10W-BLACK , S-LID12W-BLACK * * S-LID3W-WHITE , S-LID4W-WHITE , S-LID5W-WHITE , S-LID6W-WHITE , S-LID7W-WHITE , S-LID8W-WHITE , S-LID9W-WHITE , S-LID10W-WHITE , S-LID12W-WHITE * * T-LID3W-BLACK , T-LID4W-BLACK , T-LID5W-BLACK , T-LID6W-BLACK , T-LID7W-BLACK , T-LID8W-BLACK , T-LID9W-BLACK , T-LID10W-BLACK , T-LID12W-BLACK * * B-LID3W-WHITE , B-LID4W-WHITE , B-LID5W-WHITE , B-LID6W-WHITE , B-LID7W-WHITE , B-LID8W-WHITE , B-LID9W-WHITE , B-LID10W-WHITE , B-LID12W-WHITE * * G-LID3W-GLASS , G-LID4W-GLASS , G-LID5W-GLASS , G-LID6W-GLASS , G-LID7W-GLASS , G-LID8W-GLASS , G-LID9W-GLASS , G-LID10W-GLASS , G-LID12W-GLASS * * G-LID3T-GLASS , G-LID4T-GLASS , G-LID5T-GLASS , G-LID6T-GLASS , G-LID7T-GLASS , G-LID8T-GLASS , G-LID9T-GLASS , G-LID10T-GLASS , G-LID12T-GLASS * * L-CAP3W-BLACK , L-CAP4W-BLACK , L-CAP5W-BLACK , L-CAP6W-BLACK , L-CAP7W-BLACK , L-CAP8W-BLACK , L-CAP9W-BLACK , L-CAP10W-BLACK , L-CAP12W-BLACK * * L-CAP3T-BLACK , L-CAP4T-BLACK , L-CAP5T-BLACK , L-CAP6T-BLACK , L-CAP7T-BLACK , L-CAP8T-BLACK , L-CAP9T-BLACK , L-CAP10T-BLACK , L-CAP12T-BLACK * * R-CAP3W-BLACK , R-CAP4W-BLACK , R-CAP5W-BLACK , R-CAP6W-BLACK , R-CAP7W-BLACK , R-CAP8W-BLACK , R-CAP9W-BLACK , R-CAP10W-BLACK , R-CAP12W-BLACK * * R-CAP3W-WHITE , R-CAP4W-WHITE , R-CAP5W-WHITE , R-CAP6W-WHITE , R-CAP7W-WHITE , R-CAP8W-WHITE , R-CAP9W-WHITE , R-CAP10W-WHITE , R-CAP12W-WHITE * * A-CAP3W-WHITE , A-CAP4W-WHITE , A-CAP5W-WHITE , A-CAP6W-WHITE , A-CAP7W-WHITE , A-CAP8W-WHITE , A-CAP9W-WHITE , A-CAP10W-WHITE , A-CAP12W-WHITE * * G-CAP3W-GLASS , G-CAP4W-GLASS , G-CAP5W-GLASS , G-CAP6W-GLASS , G-CAP7W-GLASS , G-CAP8W-GLASS , G-CAP9W-GLASS , G-CAP10W-GLASS , G-CAP12W-GLASS * * G-CAP3T-GLASS , G-CAP4T-GLASS , G-CAP5T-GLASS , G-CAP6T-GLASS , G-CAP7T-GLASS , G-CAP8T-GLASS , G-CAP9T-GLASS , G-CAP10T-GLASS , G-CAP12T-GLASS * * Z-CAP3W-ALUMINUM , Z-CAP4W-ALUMINUM , Z-CAP5W-ALUMINUM , Z-CAP6W-ALUMINUM , Z-CAP7W-ALUMINUM , Z-CAP8W-ALUMINUM , Z-CAP9W-ALUMINUM , Z-CAP10W-ALUMINUM , Z-CAP12W-ALUMINUM * * G-LID24T.75-GLASS , G-LID25T.75-GLASS , L-CAP10.7B1.5-BLACK , L-CAP11B1.5-BLACK , L-CAP4.1B1.0-BLACK , L-CAP4.3B1.2-BLACK , L-CAP5.1B1.3-BLACK , L-CAP5.6B.9-BLACK , L-CAP10.7T1.5-BLACK , L-CAP11T1.5-BLACK , L-CAP4.1T1.0-BLACK , L-CAP4.1W1.0-BLACK , L-CAP4.1B1.0-BLACK , L-CAP4.3T1.2-BLACK , L-CAP5.1T1.3-BLACK , L-CAP5.6T.9-BLACK , L-CAP6B1.3-BLACK , L-CAP6T1.3-BLACK , L-CAP6.7B1.5-BLACK , L-CAP7.6B1.1-BLACK , L-CAP7.6B1.9-BLACK , , L-CAP7.6T1.9-BLACK , L-CAP8.4B1.5-BLACK , L-CAP9.3B1.5-BLACK , L-CAP6.7T1.5-BLACK , L-CAP7.6T1.1-BLACK , L-CAP8.4T1.5-BLACK , L-CAP9.3T1.5-BLACK , L-CAP12.2T1.5-BLACK , L-CAP12.2T2.2-BLACK , L-CAP12.2T1.5BLACK , L-CAP12.2T2.2BLACK , B-CAP12.2T1.5-BLACK , B-CAP12.2T2.2-BLACK , B-CAP12.2T1.5BLACK , B-CAP12.2T2.2BLACK , L-CAP14x9T1.9-BLACK M-LID-SO14H-BLACK , M-LID-SO14-BLACK , M-LID-SO16-BLACK , M-LID-SO16H-BLACK , , 276053 , M-CAP7.8T1.2-BLACK , M-CAP7.8T1.2K-BLACK , 278450 , C-LID15T1.0-BLACK , C-LID-15W1.0-BLACK , C-LID15T1.0-WHITE , C-LID-15W1.0-WHITE

	Catalog	Lids and Covers for Open Cavity QFN

More Products

Open Cavity QFN

Sockets

Engineering Kit

Assembly

Contact

Home

Excellent for fabless prototype, probing, RF-Microwave and MEMS.
Recommended for R&D, laboratory projects and pre-production.

Lids and covers to suit your specific package needs:

Available with and without adhesive preform.

Variety of materials and colors

CAD Center DXF & PDF Drawings .

Dome Lid Application Notes. • Model

Shielded Dome Lid Application Notes. • Shielded Model

Low loss microwave Rogers RO4003C Datasheet

Adhesive Preform: LCA3000X Datasheet

Lid Attach Application Notes

Lid Part Number System

Selecting Open Cavity QFN: Check List

Lids at a Glance
Part Series	B-LID	T-LID BLACK	T-LID WHITE	R-CAP	L-CAP	B-CAP
Shape	Flat	Flat	Flat	Dome	Dome	Dome
Material	Plastic BT	Plastic BT	Rogers RO-4003C	Rogers RO-4003C	LCP Liquid Crystal Polymer	LCP Liquid Crystal Polymer
Color	Black	Black	White	White	Black	Black
Attach	Permanent	Removable or Permanent	Removable or Permanent	Removable or Permanent	Removable or Permanent	Permanent
Sealing Method	LCA3000X Adhesive Preform	Kapton Tape or Adhesive	Kapton Tape or Adhesive	Kapton Tape or Adhesive	Customer Applied Adhesive	LCA3000X Adhesive Preform
Top View

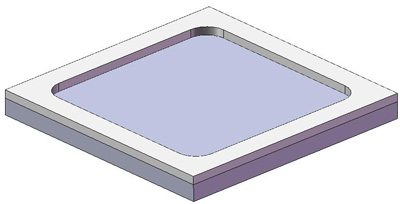

Bottom View
Rotatable Model	B-LID	T-LID	T-LID	R-CAP	L-CAP	B-CAP
Install Solidworks e-Drawings software Version 10. Required to view rotatable models: Download


B-LID Flat Lid with Adhesive Epoxy Preform Black
Lid Part Number	Size	Thickness	Shape	Qty 2" Waffle Pack	Qty 4" Waffle Pack	Lid Outline Drawing	Solidworks 360° Rotatable Model
B-LID3W-BLACK	3x3mm	0.3mm	Flat	100	256	203103	B-LID3
B-LID4W-BLACK	4x4mm	0.3mm	Flat	64	196	204103	B-LID4
B-LID5W-BLACK	5x5mm	0.3mm	Flat	36	144	205103	B-LID5
B-LID6W-BLACK	6x6mm	0.3mm	Flat	25	121	206103	B-LID6
B-LID7W-BLACK	7x7mm	0.3mm	Flat	25	81	207103	B-LID7
B-LID8W-BLACK	8x8mm	0.2mm	Flat	16	64	208103	B-LID8
B-LID9W-BLACK	9x9mm	0.3mm	Flat	16	49	209103	B-LID9
B-LID10W-BLACK	10x10mm	0.3mm	Flat	9	49	210103	B-LID10
B-LID12W-BLACK	12x12mm	0.3mm	Flat	9	36	212103	B-LID12

Material: Organic Plastic (BT)
Preform Sealant: Thixotropic latent cure adhesive.
Attach Method: Cure in oven at 150°C 60 minutes with pressure of 1/2-lbs per inch²
Pin 1 Indicator: None
Thickness: 0.30mm (12mil).
Color: Black
Recommended Cure: Final Cure 150°C 60 minutes with 1/2-LBS clip.
BLACK: D_K: 4.9 • D_F: 0.011 • CTE: 14 ppm/°C • T_g 240°C
Tray: Part Number Packaging Code: 7th/8th Character "W" 2-inch Tray • "T" 4-inch tray


T-LID Flat Lid White Black
Lid Part Number	Size	Thickness	Shape	Qty 2" Waffle Pack	Qty 4" Waffle Pack	Lid Outline Drawing	Solidworks 360° Rotatable Model
T-LID3W-WHITE T-LID3W-BLACK	3x3mm	0.2mm	Flat	100	256	203942 203102	T-LID3
T-LID4W-WHITE T-LID4W-BLACK	4x4mm	0.2mm	Flat	64	196	204942 204102	T-LID4
T-LID5W-WHITE T-LID5W-BLACK	5x5mm	0.2mm	Flat	36	144	205942 205102	T-LID5
T-LID6W-WHITE T-LID6W-BLACK	6x6mm	0.2mm	Flat	25	121	206942 206102	T-LID6
T-LID7W-WHITE T-LID7W-BLACK	7x7mm	0.2mm	Flat	25	81	207942 207102	T-LID7
T-LID8W-WHITE T-LID8W-BLACK	8x8mm	0.2mm	Flat	16	64	208942 208102	T-LID8
T-LID9W-WHITE T-LID9W-BLACK	9x9mm	0.2mm	Flat	16	49	209942 209102	T-LID9
T-LID10W-WHITE T-LID10W-BLACK	10x10mm	0.2mm	Flat	9	49	210942 210102	T-LID10
T-LID12W-WHITE T-LID12W-BLACK	12x12mm	0.2mm	Flat	9	36	212942 212102	T-LID12

Material: White = Ceramic Glass Woven Rogers RO4003C • Black = Plastic (BT)
Preform Adhesive: None
Attach Method: Tape on with kapton. Or use epoxy sealant customer's preference.
Pin 1 Indicator: None
Thickness: 0.20mm (8mil).
Color: White or Black.
WHITE: D_K: 3.4 • D_F: 0.0027 • CTE: 14 ppm/°C • T_g 280°C
BLACK: D_K: 4.9 • D_F: 0.011 • CTE: 10 ppm/°C • T_g 240°C
Tray: Part Number Packaging Code: 7th/8th Character "W" 2-inch Tray • "T" 4-inch tray



C-LID Ceramic Lid With Epoxy Preform Top Bottom
Lid Part Number	Size	Thickness	Shape	Qty Waffle Pack	Lid Outline Drawing	Solidworks 360° Rotatable Model
C-LID-SO8-BLACK	4.3x3.7mm	0.381mm	Flat	100	247073	C-LID-SO8
C-LID-SOL16-BLACK	9.4x6.8mm	0.850mm	Flat	-	294073	C-LID-SO16
C-LID-SOL20-BLACK	12.7x7.1mm	0.750mm	Flat	-	220073	C-LID-SOL24
C-LID-SOL24-BLACK	12.7x7.1mm	0.750mm	Flat	-	224073	C-LID-SOL24
C-LID-SOL28-BLACK	12.7x7.1mm	0.750mm	Flat	-	228073	C-LID-SOL28
C-LID15T1.0-BLACK	15x15mm	1.0mm	Flat	25	215471	C-LID15

Material: Ceramic Alumina Al₂O₃
Adhesive Preform: Latent stage thixoropic adhesive.
Pin 1 Indicator: None or White Dot Optional
Thickness: 0.35 ~ 1.0mm
Color: Black (Standard) or White (Optional)
CTE: 6.7 ppm/°C
Recommended Cure: Final Cure 150°C 60 minutes with 1/2-LBS clip.



M-LID Molded Flat Lid Top Bottom
Lid Part Number	Size	Thickness	Adhesive Preform	Qty 2" Waffle Pack	Lid Outline Drawing	Solidworks 360° Rotatable Model
M-LID-SO14H-BLACK	7.6x3.9mm	0.61mm	Yes	28	276053	M-LID-SO14

Material: Semiconductor Grade Black Molding Compound
Adhesive Preform: Latent stage thixoropic adhesive. Choose adhesive thickness Suffix K = 5mil Max (Thin). Suffix H = 10mil (Thick).
Without Adhesive Preform: Available Without Adhesive • Suffix Blank.
Pin 1 Indicator: None or White Dot (Optional)
Thickness: 0.076~0.10mm (3~4mil).
Color: Black (Standard)
Recommended Cure: Final Cure 150°C 60 minutes with 1/2-LBS clip.

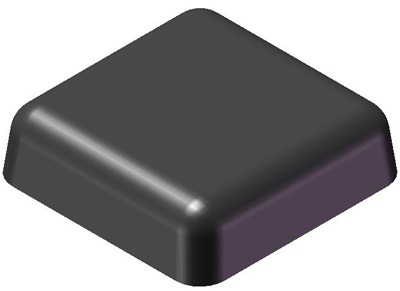

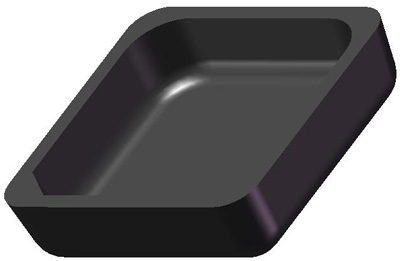

M-CAP Dome Lid (Cup/Cap/Cover) Top Cavity
Lid Part Number	Outside Size X/Y	Outside Height Z	Inside Height H	Adhesive Preform	Qty Tray	Lid Outline Drawing	Solidworks 360° Rotatable Model
M-CAP7.8T1.2-BLACK	7.8x7.8mm	1.2mm	0.70mm	None	64	278450	M-CAP7.8T1.2

Material: G770H Semiconductor Grade EMC Molding Compound.
Benefit: Material of lid matches CTE and T_gof Molding compound of M-QFN Cavity Package.
Sealant: M-CAP = Without Adhesive • Optional Adhesive Preform. Choose adhesive thickness Suffix K = 5mil Max (Thin). Suffix H = 10mil (Thick).
Pin 1 Indicator: None
Other sizes: Wide range of cavity depths and custom sizes available
Color: Black.
CTE ɑ1: 8ppm/°C • CTE ɑ2: 37 ppm/°C • T_g 130°C

R-CAP Dome Lid (Cup/Cap/Cover) Top Cavity
Lid Part Number	Size	Outside Height Z	Inside Height H	Lid Shape	Qty 2" Waffle Pack	Lid Outline Drawing	Solidworks 360° Rotatable Model
R-CAP3T-WHITE	3x3mm	1.0mm	0.55mm	Dome Lid	256	203440	R-CAP3-WHITE
R-CAP4T-WHITE	4x4mm	1.0mm	0.55mm	Dome Lid	196	204440	R-CAP4-WHITE
R-CAP5T-WHITE	5x5mm	1.0mm	0.55mm	Dome Lid	144	205940	R-CAP5-WHITE
R-CAP6T-WHITE	6x6mm	1.0mm	0.55mm	Dome Lid	121	206440	R-CAP6-WHITE
R-CAP7T-WHITE	7x7mm	1.0mm	0.55mm	Dome Lid	81	207440	R-CAP7-WHITE
R-CAP8T-WHITE	8x8mm	1.0mm	0.55mm	Dome Lid	64	208440	R-CAP8-WHITE
R-CAP9T-WHITE	9x9mm	1.0mm	0.55mm	Dome Lid	49	209440	R-CAP9-WHITE
R-CAP10T-WHITE	10x10mm	1.0mm	0.55mm	Dome Lid	49	210440	R-CAP10-WHITE
R-CAP12T-WHITE	12x12mm	1.0mm	0.55mm	Dome Lid	36	212440	R-CAP12-WHITE

Material: WHITE = Ceramic filled thermoset, reinforced Woven Glass Rogers RO4003C
Sealant: Without Adhesive
Pin 1 Indicator: None
Thickness: Total Outside thickness: 1.0mm (40mil). Dome Inside Ceiling: 0.55mm (21mil). Other thickness/heights available.
Color: White
WHITE: D_K: 3.4 • D_F: 0.0027 • CTE: 14 ppm/°C • T_g 280°C
Tray: Part Number Packaging Code: 7th/8th Character "W" 2-inch Tray • "T" 4-inch tray

L-CAP Dome Lid (Cup/Cap/Cover) Top Cavity
Lid Part Number	Outside Size X/Y	Outside Height Z	Inside Height H	Lid Shape	Qty Tray	Lid Outline Drawing	Solidworks 360° Rotatable Model
L-CAP4.1T1.0-BLACK	4.06x4.06mm	1.0mm	0.7mm	Dome Lid	196	241480	L-CAP4.1
L-CAP4.3T1.2-BLACK	4.3x4.3mm	1.2mm	0.68mm	Dome Lid	196	243480	L-CAP4.3
L-CAP5.1T1.3-BLACK	5.08x5.08mm	1.27mm	0.76mm	Dome Lid	121	250480	L-CAP5.1
L-CAP5.1T1.9-BLACK	5.08x5.08mm	1.9mm	1.4mm	Dome Lid	121	252480	L-CAP5.1
L-CAP5.1T2.5-BLACK	5.08x5.08mm	2.5mm	2.0mm	Dome Lid	121	253480	L-CAP5.1
L-CAP5.1T3.8-BLACK	5.08x5.08mm	3.8mm	3.3mm	Dome Lid	121	254480	L-CAP5.1
L-CAP5.6T.9-BLACK	5.6x5.6mm	0.90mm	0.61mm	Dome Lid	121	256480	L-CAP5.6
L-CAP6.7T1.5-BLACK	6.7x6.7mm	1.5mm	1.0mm	Dome Lid	64	267480	L-CAP6.7
L-CAP7T1.3-BLACK	7x7mm	1.3mm	1.0mm	Dome Lid	64	272480	L-CAP7
L-CAP7.6T1.1-BLACK	7.6x7.6mm	1.1mm	0.56mm	Dome Lid	64	276480	L-CAP7.6
L-CAP7.6T1.9-BLACK	7.6x7.6mm	1.9mm	1.4mm	Dome Lid	49	277480	L-CAP7.6
L-CAP7.6T2.5-BLACK	7.6x7.6mm	2.5mm	2.0mm	Dome Lid	49	278480	L-CAP7.6
L-CAP8.4T1.5-BLACK	8.4x8.4mm	1.5mm	1.0mm	Dome Lid	49	283480	L-CAP8.4
L-CAP8.9T1.9-BLACK	8.9x8.9mm	1.9mm	1.4mm	Dome Lid	49	289480	L-CAP8.9
L-CAP9.3T1.5-BLACK	9.3x9.3mm	1.5mm	1.0mm	Dome Lid	49	292480	L-CAP9.3
L-CAP10.2T1.9-BLACK	10.2x10.2mm	1.9mm	1.4mm	Dome Lid	49	297480	L-CAP10.2
L-CAP10.7T1.5-BLACK	10.7x10.7mm	1.5mm	1.0mm	Dome Lid	36	298480	L-CAP10.7
L-CAP11T1.5-BLACK	11x11mm	1.5mm	1.0mm	Dome Lid	36	211480	L-CAP11
L-CAP11.4T1.9-BLACK	11.4x11.4mm	1.9mm	1.4mm	Dome Lid	36	295480	L-CAP11.4
L-CAP11.4T2.5-BLACK	11.4x11.4mm	2.5mm	2.0mm	Dome Lid	36	274480	L-CAP11.4
L-CAP12.2T1.5-BLACK	12.2x12.2mm	1.5mm	0.66mm	Dome Lid	36	291480	L-CAP12.2
L-CAP12.2T1.7-BLACK	12.2x12.2mm	1.75mm	0.90mm	Dome Lid	36	293480	L-CAP12.2
L-CAP12.2T2.2-BLACK	12.2x12.2mm	2.2mm	1.38mm	Dome Lid	36	299480	L-CAP12.2
L-CAP12.7T1.9-BLACK	12.7x12.7mm	1.9mm	1.4mm	Dome Lid	25	296480	L-CAP12.7
L-CAP14x9T1.9-BLACK	14x9mm	1.9mm	1.1mm	Dome Lid	25	294480	L-CAP14x9
L-CAP19T2.5-BLACK	19x19mm	2.5mm	1.6mm	Dome Lid	16	219480	L-CAP19

Material: LCP - Liquid Crystal Polymer
Sealant: L-CAP = Without Adhesive • B-CAP Adhesive Preform. Choose adhesive thickness Suffix K = 5mil Max (Thin). Suffix H = 10mil (Thick).
Pin 1 Indicator: None
Other sizes: Wide range of cavity depths and custom sizes available
Color: Black.
D_K: 3.7 • D_F: 0.03 • CTE: 10 ppm/°C • T_g 280°C

Lid Part Numbering System
T	-	LID	5	W	-	BLACK
Model		Shape	Size	Packaging	Options	COLOR
Flat Lids (Without Adhesive): T-LID (BLACK) = BT T-LID (WHITE) = RO4003C G-LID (CLEAR) = Borosilicate Glass Flat Lids (With Adhesive Preform): B-LID (BLACK) = BT C-LID (BLACK) = Ceramic Al₂O₃ M-LID (BLACK) = Molded Y-LID (Clear) = Borosilicate Glass Dome Lids (Without Adhesive): C-CAP (WHITE) = Ceramic Al₂O₃ R-CAP (WHITE) = RO4003C G-CAP (CLEAR) = Borosilicate Glass L-CAP (BLACK) = LCP F-CAP = BGA Flat - Copper (Ni-Plated) H-CAP = BGA Hat - Copper (Ni-Plated) Z-CAP = Aluminum Dome Lids (With Adhesive Preform): B-CAP (BLACK) = LCP A-CAP (WHITE) = Ceramic Al₂O₃		LID = Flat Lid CAP = Dome Cover EXT = Cavity Height Extender	3~12 mm Other Size Available Square & Rectangle	W = 2" Tray T = 4" Tray X = JEDEC Tray B = BULK E = T&R Reel	Blank = Standard Without Epoxy Preform Special Height 0.2~3.0mm DOME LIDS K = Standard Epoxy Preform ~5mil thick H= Heavy Epoxy Preform ~10mil Thick	FLAT LID: -BLACK: B-LID, T-LID, C-LID -WHITE: T-LID (RO4003C) -GLASS: G-LID (Borosilicate) DOME LID: -BLACK: L-CAP, R-CAP (BT) -WHITE: R-CAP (RO4003C) -WHITE: C-CAP Al₂O3 -GLASS: G-CAP (Borosilicate) -ALUMINUM: Z-CAP -CU-Ni: H-CAP & F-CAP

Lid Drawing Numbering System
2	03	1	0	2
Series	Body Size	Packaging	Material	Lid Style
2 = Lid FLAT LID B-LID (BT) C-LID (Ceramic) G-LID (Glass) M-LID (EMC G770) T-LID (BT/RO4003C) U-LID (EMC G770) DOME LID Without Adhesive G-CAP (Glass) H-CAP (Cavity 1.0mm) L-CAP (LCP) M-CAP (Cavity 0.6mm) R-CAP (RO-4003C) Z-CAP (Aluminum) DOME LID With Adhesive B-CAP (LCP) P-CAP (BT) U-CAP (Cavity 0.6mm) W-CAP (Cavity 1.0mm)	03 = 3mm SQ 04 = 4mm SQ 05 = 5mm SQ 06 = 6mm SQ 07 = 7mm SQ 08 = 8mm SQ 09 = 9mm SQ 10 = 10mm SQ 12 = 12mm SQ Other Size Available Square & Rectangle	BT Organic (T-LID-BLACK or B-LID) 1 = 2" Tray (W) 4 = 4" Tray (T) 6 = JEDEC Tray (X) _______________ LCP (L-CAP or B-CAP) 1 = 2" Tray (W) 4 = 4" Tray (T) 6 = JEDEC Tray (X) 7 = Bulk (B) 8 = On Tape (E) _______________ Ceramic Al₂O₃ (C-LID) 0 = 2" Tray (W) 4 = 4" Tray (T) 6 = JEDEDC Tray (X) 8 = On Tape (E) _______________ RO4003C (T-LID-WHITE) 4 = 4" Tray (T) 6 = JEDEC Tray (X) 8 = On Tape (E) 9 = 2" Tray (W) _______________ Glass (G-LID or G-CAP) 0 = 2" Tray (W) 4 = 4" Tray (T) 6 = JEDEDC Tray (X) 8 = On Tape (E) _______________ Aluminum (Z-CAP) Copper (H-CAP or F-CAP) Kovar/Alloy 42 (K-LID) 0 = 2" Tray (W) 4 = 4" Tray (T) 6 = JEDEDC Tray (X) 7 = Bulk	Semiconductor Grade (Series): 0 = BT Organic (T-LID/B-LID) 5 = Molded EMC Black (M-LID , M-CAP , H-CAP, U-LID , U-CAP , W-CAP) Metal (Series): 1 = Cu - Ni Plate (H-CAP) 3 = Aluminum (Z-CAP) 9 = Cu - Ni Plate (F-CAP) RF & Microwave (Series): 2 = Glass Borosilicate (G-LID/G-CAP) 4 = Rogers RO4003C White (T-LID/R-CAP) 6 = Ceramic Alumina Al₂O₃ White (C-LID/C-CAP) 7 = Ceramic Alumina Al₂O₃ Black (C-LID/C-CAP) 8 = LCP - Liquid Crystal Polymer (L-CAP/B-CAP)	Flat LID: 1 = Perimeter Adhesive 2 = Without Adhesive 3 = Full Area Adhesive Dome CAP: Without Adhesive 0 = L-CAP, G-CAP, R-CAP 4 = M-CAP (EMC 0.6mm Cavity) 5 = H-CAP (EMC 1.0mm Cavity) Dome CAP: Adhesive Preform 5 mil Thick (K) 6 = U-CAP (EMC 0.6mm Cavity) 9 = W-CAP (EMC 1.0mm Cavity) 7 = B-CAP LCP 8 = B-CAP LCP (10mil) Thick Adhesive (H)

Packaging Codes Quantity
QFN D/E Size	W 2" Waffle	T 4" Waffle	X JEDEC Tray
3mm	100	306	490
4mm	64	225	490
5mm	36	144	490
6mm	25	121	260
7mm	25	81	260
8mm	16	64	260
9mm	16	49	260
10mm	9	49	168
12mm	9	36	189
